53K201-200N5

Obsolete

Rosenberger

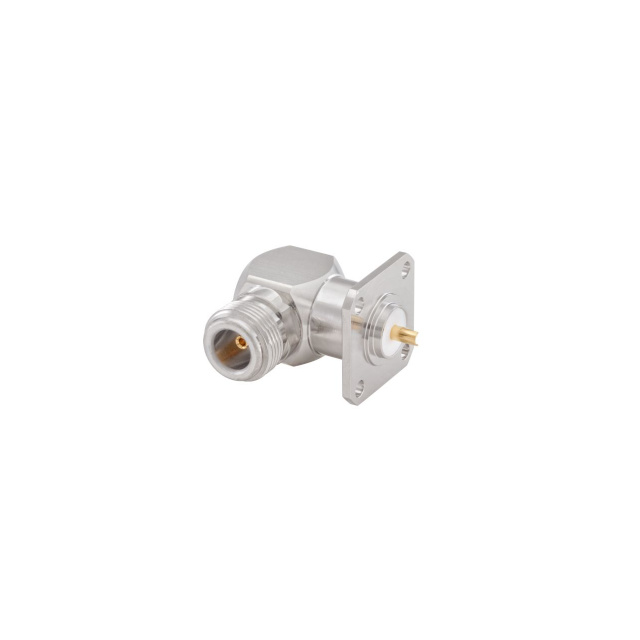

N TYPE RIGHT ANGLE JACK

Search across all available documentation for this part.

Obsolete

Rosenberger

N TYPE RIGHT ANGLE JACK

Technical Specifications

Parameters and characteristics for this part

Specification	53K201-200N5

Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Right Angle, Panel Mount
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Dielectric Material	Mating Cycles	Mounting Type	Body Material	Connector Style	Impedance	Frequency - Max [Max]	Contact Termination	Center Contact Plating	Mounting Feature	Housing Color	Body Finish	Connector Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Shield Termination	Center Contact Material	Number of Ports
Rosenberger 53K201-200N5	Polytetrafluoroethylene (PTFE)	500	Panel Mount Right Angle	Brass	N Type	50 Ohms	11 GHz	Solder Cup	Gold	Flange	Silver	White Bronze	Female Socket Jack	500 V	155 °C	-55 °C	Solder	Beryllium Copper	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount, Right Angle Solder Cup
