6GK58966MM000AA0

Active

Siemens

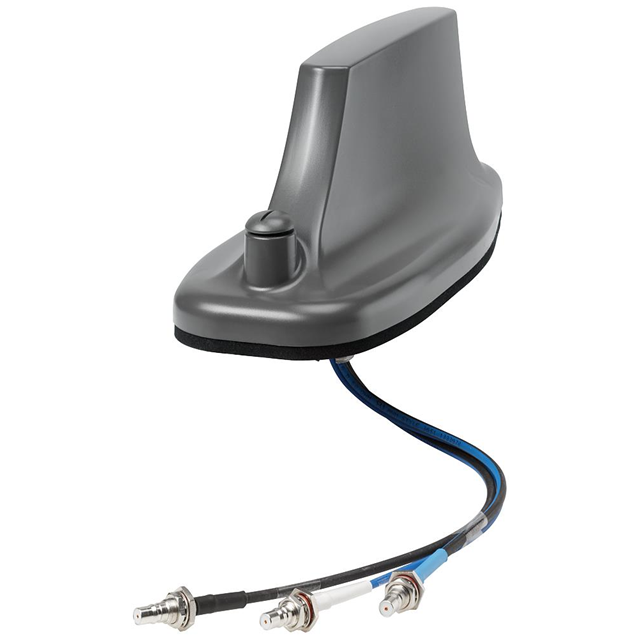

MOBILE RADIO ANTENNA ANT896-6MM

Search across all available documentation for this part.

Active

Siemens

MOBILE RADIO ANTENNA ANT896-6MM

Technical Specifications

Parameters and characteristics for this part

Specification	6GK58966MM000AA0

Antenna Type	Module
Applications	LTE, UMTS, GSM
Frequency (Center/Band)	1.8 GHz, 850 MHz, 1.575 GHz, 900 MHz, 3.65 GHz, 2.545 GHz, 1.7 GHz, 800 MHz, 2.2 GHz, 1.9 GHz, 2.1 GHz, 2.6 GHz
Frequency Group	Wide Band
Frequency Range [Max]	5.935 GHz, 2.69 GHz
Frequency Range [Min]	4.9 GHz, 2.4 GHz
Gain	5 dBi, 7 dBi, 6 dB
Height (Max)	82 mm
Height (Max)	3.228 in
Ingress Protection	IP68, IP69K
Number of Bands	12
RF Family/Standard	Cellular
Termination	QMA
VSWR	1.8

Part	Gain	Antenna Type	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Frequency Group	Number of Bands	VSWR	Ingress Protection	Termination	Frequency (Center/Band)	Applications	Frequency Range [Max]	Frequency Range [Min]	Height (Max)	Height (Max)
Siemens 6GK58966MH000AA0	5 dBi	Module	1.575 in	40 mm	Cellular	Wide Band	10	2.2	IP69K	N Type Female	1.575 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.6 GHz 700 MHz 800 MHz 850 MHz 900 MHz	GSM LTE UMTS
Siemens 6GK58966MM000AA0	5 dBi 6 dB 7 dBi	Module			Cellular	Wide Band	12	1.8	IP68 IP69K	QMA	1.575 GHz 1.7 GHz 1.8 GHz 1.9 GHz 2.1 GHz 2.2 GHz 2.545 GHz 2.6 GHz 3.65 GHz 800 MHz 850 MHz 900 MHz	GSM LTE UMTS	2.69 GHz 5.935 GHz	2.4 GHz 4.9 GHz	82 mm	3.228 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA GSM, LTE, UMTS Module QMA
