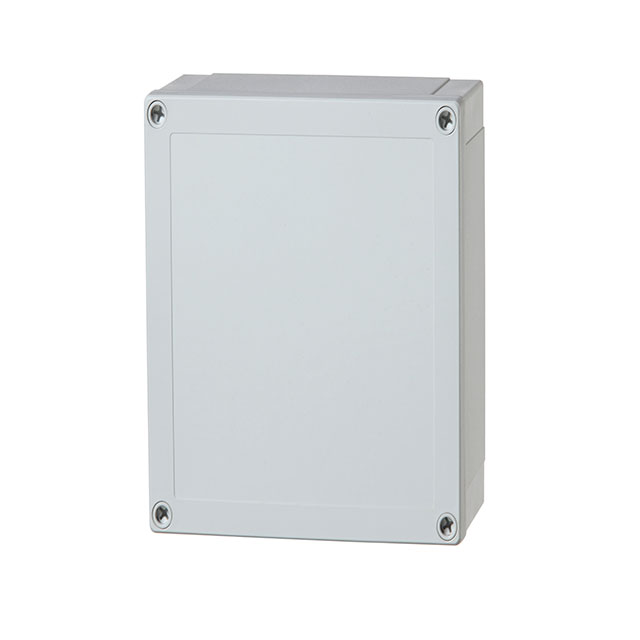

UL PC 150/150 HG

Active

FIBOX Enclosures

BOX PLAS LGT GRY 7.1"L X 5.1"W

Search across all available documentation for this part.

Active

FIBOX Enclosures

BOX PLAS LGT GRY 7.1"L X 5.1"W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UL PC 150/150 HG	UL PC 150 Series

Area (L x W)	36.2 in˛	36.2 in˛
Area (L x W)	234 cm²	234 cm²
Area (L x W)	-	36.3 in²
Color	Light Gray	Gray, Clear Cover/Door, Light Gray
Container Type	Box	Box
Design	Cover Included	Cover Included
Height [z]	5.9 in	3.9 - 124.46 mm
Height [z]	149.86 mm	99.06 - 175.26 mm
Material	Plastic, Polycarbonate	Plastic, Polycarbonate
Material Flammability Rating	UL 746C 5	UL 746C 5
Ratings	IP67, IP66, UL 508	IP67, NEMA 4, IP66, NEMA 1, UL 508, NEMA 4X, NEMA 6
Size / Dimension [x]	7.1 "	7.09 - 7.1 in
Size / Dimension [x]	180.34 mm	180.09 - 180.34 mm
Size / Dimension [y]	129.54 mm	129.54 - 130.1 mm
Size / Dimension [y]	5.1 "	5.1 - 5.122 in

BOX PLASTIC 7.09"L X 5.12"W

Part	Ratings	Material	Container Type	Material Flammability Rating	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Area (L x W)	Area (L x W) [custom]	Design	Color	Height [z]	Height [z]	Area (L x W)
FIBOX Enclosures UL PC 150/125 XHT	IP66, IP67, NEMA 1, NEMA 4, NEMA 4X, NEMA 6, UL 508	Plastic, Polycarbonate	Box	UL 746C 5	180.09 mm	7.09 in	5.122 in	130.1 mm	234 cm²	36.3 in²	Cover Included	Clear Cover/Door, Gray	124.46 mm	124.46 mm
FIBOX Enclosures UL PC 150/100 LT	IP66, IP67, UL 508	Plastic, Polycarbonate	Box	UL 746C 5	180.34 mm	7.1 "	5.1 "	129.54 mm	234 cm²		Cover Included	Clear Cover/Door, Gray	3.9 in	99.06 mm	36.2 in˛
FIBOX Enclosures UL PC 150/175 XHT	IP66, IP67, NEMA 1, NEMA 4, NEMA 4X, NEMA 6, UL 508	Plastic, Polycarbonate	Box	UL 746C 5	180.09 mm	7.09 in	5.122 in	130.1 mm	234 cm²	36.3 in²	Cover Included	Clear Cover/Door, Gray	6.9 in	175.26 mm
FIBOX Enclosures UL PC 150/150 HG	IP66, IP67, UL 508	Plastic, Polycarbonate	Box	UL 746C 5	180.34 mm	7.1 "	5.1 "	129.54 mm	234 cm²		Cover Included	Light Gray	5.9 in	149.86 mm	36.2 in˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Light Gray Cover Included 7.100" L x 5.100" W (180.34mm x 129.54mm) X 5.900" (149.86mm)
