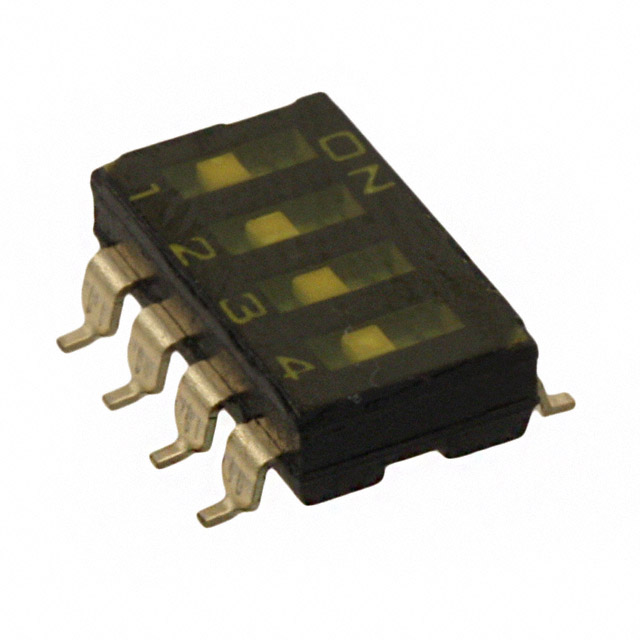

A6S-4102-H(VNM)

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH SLIDE DIP SPST 0.025A 24V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Dip Switch SPST 4 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC

Technical documentation and resources

Part	Height Above Board	Height Above Board	Pitch [x]	Pitch	Pitch [x]	Number of Positions	Length	Length	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Contact Finish	Actuator Level	Current Rating (Amps)	Mechanical Life	Circuit	Features	Termination Style	Actuator Type	Washable	Mounting Type
Omron Electronics Inc-EMC Div A6S-4102-PH(VNM)	3.7 mm	0.146 in	0.1 in	Full	2.54 mm	4	0.437 in	11.1 mm	24 VDC	-20 C	70 °C	1000 Cycles	Gold	Flush, Recessed	25 mA	1000 Cycles	SPST	Tape Seal	Gull Wing	Slide (Standard)		Surface Mount
Omron Electronics Inc-EMC Div A6S-4102-H(VNM)	3.7 mm	0.146 in	0.1 in	Full	2.54 mm	4	0.437 in	11.1 mm	24 VDC	-20 C	70 °C	1000 Cycles	Gold	Flush, Recessed	25 mA	1000 Cycles	SPST	Tape Seal	Gull Wing	Slide (Standard)		Surface Mount
