MDM-9SH006F-A174-F222

Active

ITT Cannon, LLC

CABLE ASSY D - MIC D 9P 914.4MM

MDM-9SH006F-A174-F222

Active

ITT Cannon, LLC

CABLE ASSY D - MIC D 9P 914.4MM

Description Specifications Series Pricing CAD Documents

Description

General part information

MDM-9 Series

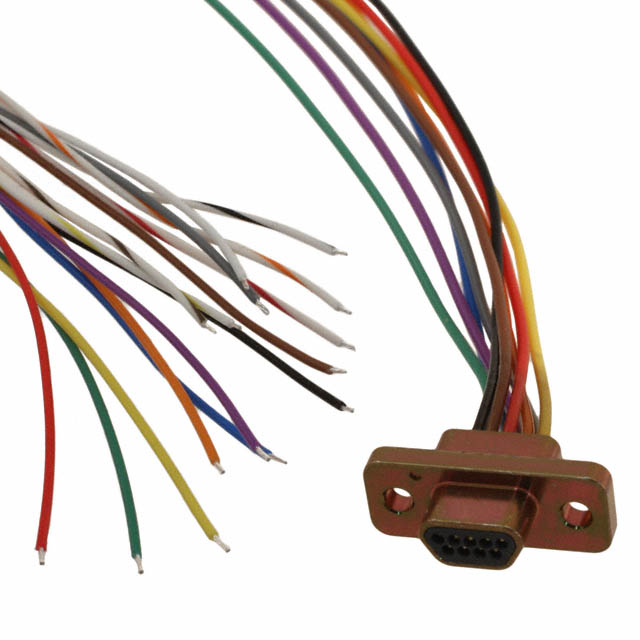

D-Sub Cable Assembly D-Type, Micro-D Multiple, Individual 3.00' (914.40mm) Receptacle, Female Sockets to Individual Wire Leads Unshielded

Technical Specifications

Parameters and characteristics for this part

Specification	MDM-9SH006F-A174-F222

1st Connector	Female Sockets, Receptacle
2nd Connector	Individual Wire Leads
Color	Multiple, Individual
Contact Finish	Gold
Length	3 ft
Number of Positions	9
Shielding	Unshielded
Type	Micro-D, D-Type

MDM-9 Series

...

Part	Contact Type	Number of Rows	Current Rating	Connector Type	Termination	Flange Feature	Features	Connector Layout Row to Row	Connector Layout Pitch	Contact Finish	Mounting Type	Connector Style	Number of Positions	Finish	Shell Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Dielectric Material	Type	Shielding	Length	1st Connector	Color	2nd Connector
ITT Cannon, LLC MDM-9PCBRM7-F222	Signal	2	3 A	Male Pins Plug	Solder	Female Screwlock (2-56) Mating Side	Shielded	0.1	0.05	Gold	Panel Mount Right Angle Through Hole	D-Type Micro-D	9	Yellow Chromate Plated Cadmium	Aluminum	-55 °C	200 °C	Copper Alloy	Liquid Crystal Polymer (LCP)
ITT Cannon, LLC MDM-9PH006P-A174										Gold			9							D-Type Micro-D	Unshielded	3 ft	Male Pins Plug	Individual Multiple	Individual Wire Leads
ITT Cannon, LLC MDM-9PH001L-A174										Gold			9							D-Type Micro-D		1.5 ft	Male Pins Plug	Individual Multiple	Individual Wire Leads
ITT Cannon, LLC MDM-9PH016M5-A30										Gold			9							D-Type Micro-D	Unshielded	0.5 ft	Male Pins Plug	Individual Multiple	Individual Wire Leads
ITT Cannon, LLC MDM-9SH267L-A172										Gold			9							D-Type Micro-D	Unshielded		Female Sockets Receptacle		Individual Wire Leads
ITT Cannon, LLC MDM-9PH046P										Gold			9							D-Type Micro-D		6 ft	Male Pins Plug	Individual Multiple	Individual Wire Leads
ITT Cannon, LLC MDM-9SL2K	Signal	2	3 A	Female Sockets Receptacle	Wire Leads	Cable Side Male Jackscrew (2-56)	Shielded	0.043	0.05	Gold	Panel Mount	D-Type Micro-D	9	Yellow Chromate Plated Cadmium	Aluminum	-55 °C	125 °C	Copper Alloy	Liquid Crystal Polymer (LCP)
ITT Cannon, LLC MDM-9PH001A										Gold			9							D-Type Micro-D	Unshielded	1.5 ft	Male Pins Plug	Individual Yellow	Individual Wire Leads
ITT Cannon, LLC MDM-9SH001L-A174										Gold			9							D-Type Micro-D	Unshielded	1.5 ft	Female Sockets Receptacle	Individual Yellow	Individual Wire Leads
ITT Cannon, LLC MDM-9SH006F-A174-F222										Gold			9							D-Type Micro-D	Unshielded	3 ft	Female Sockets Receptacle	Individual Multiple	Individual Wire Leads
