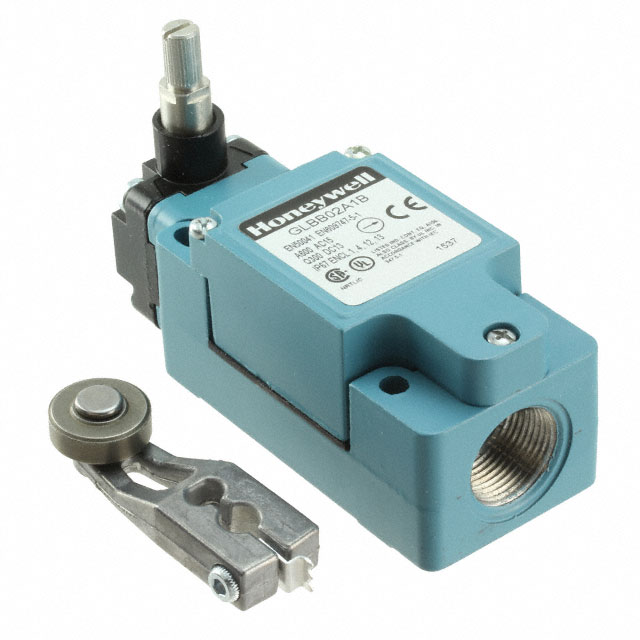

GLBB02A1B

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 6A 120V

Search across all available documentation for this part.

Active

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION SPDT 6A 120V

Technical Specifications

Parameters and characteristics for this part

SWITCH SNAP ACTION SPDT 6A 120V

Part	Overtravel	Ingress Protection	Termination Style	Pretravel	Mounting Type	Mechanical Life	Switch Function	Operating Position	Differential Travel	Current Rating (Amps)	Voltage Rating - AC	Actuator Type	Operating Force	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC
Honeywell Sensing and Control EMEA GLBB02A1B	59 °	IP67 - Dust Tight, Waterproof	Plug In	26 °	Chassis Mount	15000000 Cycles	On-Mom	26 °	12 °	6 A, 550 mA	120 V	Roller, Side Rotary	33 gfm	SPDT	-25 °C	85 °C	125 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 214.55

General part information

Switch SPDT Chassis Mount

Technical documentation and resources
