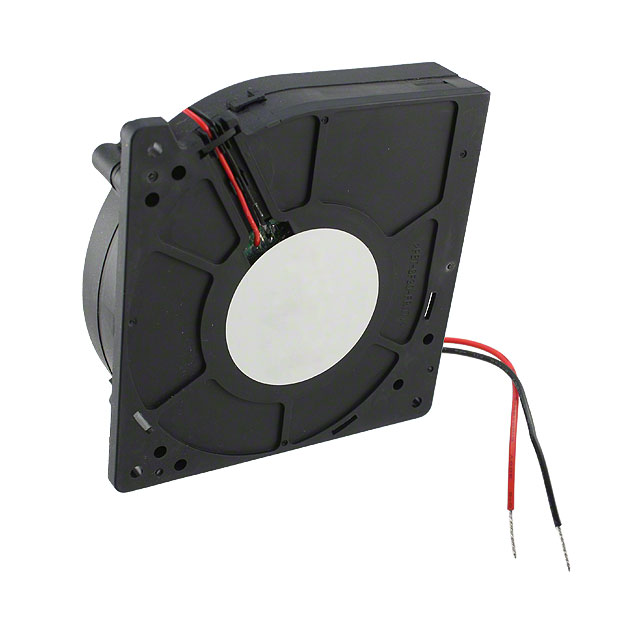

BFB1224GH-TA50

Active

Delta Electronics

FAN BLOWER 120X32MM 24VDC WIRE

Search across all available documentation for this part.

Active

Delta Electronics

FAN BLOWER 120X32MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	BFB1224GH-TA50

Air Flow	60.4 CFM
Air Flow	1.69 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	1.6 A
Fan Type	Blower
Ingress Protection	IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	50000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	65 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	38.4 W
RPM	4400 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	120 mm
Size / Dimension [z]	120 mm
Static Pressure	4.094 in H2O
Static Pressure	1019.8 Pa
Termination	2 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	14 VDC
Width [y]	32 mm

Part	Material - Frame	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Noise	Material - Blade	Size / Dimension	Size / Dimension [x]	Size / Dimension [z]	Approval Agency	Fan Type	Lifetime @ Temp.	Width [y]	Features	Bearing Type	Voltage Range [Max]	Voltage Range [Min]	RPM	Voltage - Rated	Termination	Static Pressure	Static Pressure	Air Flow	Air Flow	Current Rating (Amps)	Power (Watts)	Weight	Weight	Ingress Protection
Delta Electronics BFB1224GH-AF00	Plastic	-10 °C	-10 °C	60 °C	60 °C	65 dB	Plastic	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	Blower	50000 Hrs	32 mm	Locked Rotor Protection Speed Sensor (Tach)	Ball	27.6 VDC	14 VDC	4400 RPM	24 VDC	3 Wire Leads	4.094 in H2O	1019.8 Pa	60.4 CFM	1.69 m³/min	1.6 A	38.4 W
Delta Electronics BFB1224VH	Plastic	-10 °C	-10 °C	60 °C	60 °C	56.5 dB	Plastic	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	Blower	50000 Hrs	32 mm		Ball	27.6 VDC	7 V	3100 RPM	24 VDC	2 Wire Leads	1.3 in H2O	323.6 Pa	39.5 CFM	1.11 m³/min	600 mA	14.4 W	229.97 g	0.507 lb
Delta Electronics BFB1224GH-TA50	Plastic	-10 °C	-10 °C	60 °C	60 °C	65 dB	Plastic	Square/Rounded	120 mm	120 mm	CE CSA UL VDE	Blower	50000 Hrs	32 mm		Ball	27.6 VDC	14 VDC	4400 RPM	24 VDC	2 Wire Leads	4.094 in H2O	1019.8 Pa	60.4 CFM	1.69 m³/min	1.6 A	38.4 W			IP55 - Dust Protected Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower 24VDC Square/Rounded - 120mm L x 120mm H Ball 60.4 CFM (1.69m³/min) 2 Wire Leads
