396-026-520-103
ActiveEDAC Inc.

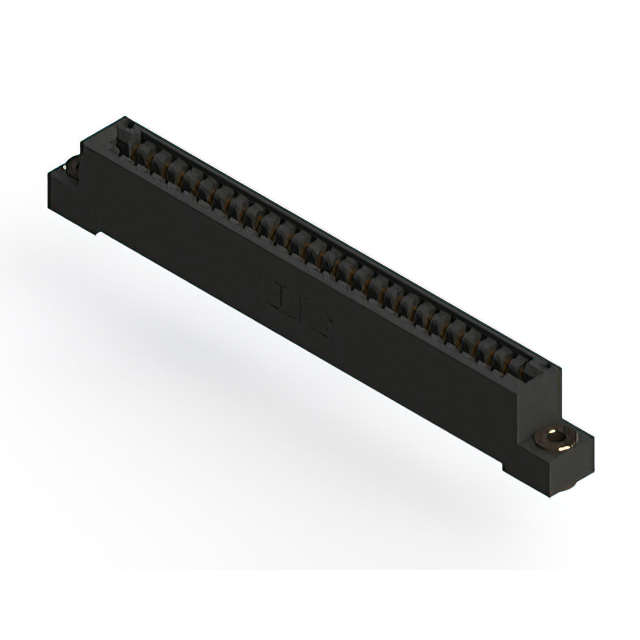

CONN EDGE SGL FMALE 26POS 0.125
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
396-026-520-103
ActiveEDAC Inc.
CONN EDGE SGL FMALE 26POS 0.125
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 396-026-520-103 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Floating Bobbin, Flush Mount |
| Flange Feature [diameter] | 0.116 in |
| Flange Feature [diameter] | 2.95 mm |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 26 |
| Number of Positions/Bay/Row [custom] | 26 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.125 in |
| Pitch [x] | 3.18 mm |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
396-026 Series
...
| Part | Gender | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Material | Termination Rows | Card Type | Number of Positions | Number of Positions/Bay/Row [custom] | Color | Read Out | Mounting Type | Flange Feature | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Material - Insulation | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Contact Finish | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 2 | Non Specified - Dual Edge | 26 | 13 | Black | Dual | Through Hole | Flush Mount M3 Threaded Insert Top Opening | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | |||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 2 | Non Specified - Dual Edge | 26 | 13 | Black | Dual | Through Hole Right Angle | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder Wire Wrap | Gold | Card Guides | ||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 26 | 26 | Black | Single | Through Hole | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Gold | ||||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 26 | 26 | Black | Single | Through Hole | Top Mount Opening Unthreaded | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Gold | 0.156 in | 3.96 mm | |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 2 | Non Specified - Dual Edge | 26 | 13 | Black | Dual | Through Hole | Floating Bobbin Flush Mount | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Wire Wrap | Gold | 0.116 in | 2.95 mm | |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 2 | Non Specified - Dual Edge | 26 | 13 | Black | Dual | Through Hole | 4-40 Flush Mount Threaded Insert Top Opening | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | |||
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 26 | 26 | Black | Single | Through Hole | Floating Bobbin Flush Mount | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | 0.116 in | 2.95 mm | |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 2 | Non Specified - Dual Edge | 26 | 13 | Black | Dual | Through Hole | Flush Mount Top Opening Unthreaded | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | 0.128 " | 3.25 mm | |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 26 | 26 | Black | Single | Through Hole | Floating Bobbin Top Mount Opening | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | 0.116 in | 2.95 mm | |
EDAC Inc. | Female | 10 Áin | 0.25 Ám | Cantilever | Copper Alloy | 1 | Non Specified - Single Edge | 26 | 26 | Black | Single | Through Hole | Flush Mount Top Opening Unthreaded | 0.125 in | 3.18 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Polyester Thermoplastic | -40 °C | 105 ░C | Solder | Gold | 0.128 " | 3.25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.92 | |
Description
General part information
396-026 Series
26 Position Female Connector Non Specified - Single Edge Gold 0.125" (3.18mm) Black
