MAXREFDES121C#
ActiveAnalog Devices Inc./Maxim Integrated

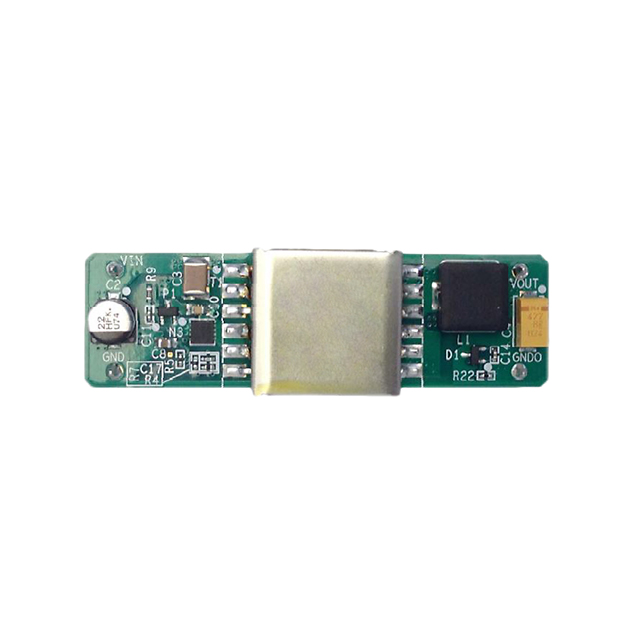

EV KIT PWR SPLY 24V-3.3V 33W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MAXREFDES121C#
ActiveAnalog Devices Inc./Maxim Integrated
EV KIT PWR SPLY 24V-3.3V 33W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MAXREFDES121C# |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 10 A |
| Frequency - Switching | 250 kHz |
| Main Purpose | DC/DC Converter |
| Outputs and Type | Isolated |
| Outputs and Type | 1 |
| Power - Output | 33 W |
| Regulator Topology | Forward Converter |
| Supplied Contents | Board(s) |
| Utilized IC / Part | MAX17599 |
| Voltage - Input [Max] | 36 V |
| Voltage - Input [Min] | 18 V |
| Voltage - Output | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 25.61 | |
MAXREFDES121 Series
EV KIT PWR SPLY 24V-3.3V 33W
| Part | Board Type | Voltage - Output | Main Purpose | Frequency - Switching | Supplied Contents | Regulator Topology | Power - Output | Voltage - Input [Max] | Voltage - Input [Min] | Utilized IC / Part | Outputs and Type | Outputs and Type | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAXREFDES121C# | Fully Populated | 3.3 V | DC/DC Converter | 250 kHz | Board(s) | Forward Converter | 33 W | 36 V | 18 V | MAX17599 | Isolated | 1 | 10 A |
Description
General part information
MAXREFDES121 Series
MAX17599 - DC/DC Converter 1, Isolated Outputs Evaluation Board
