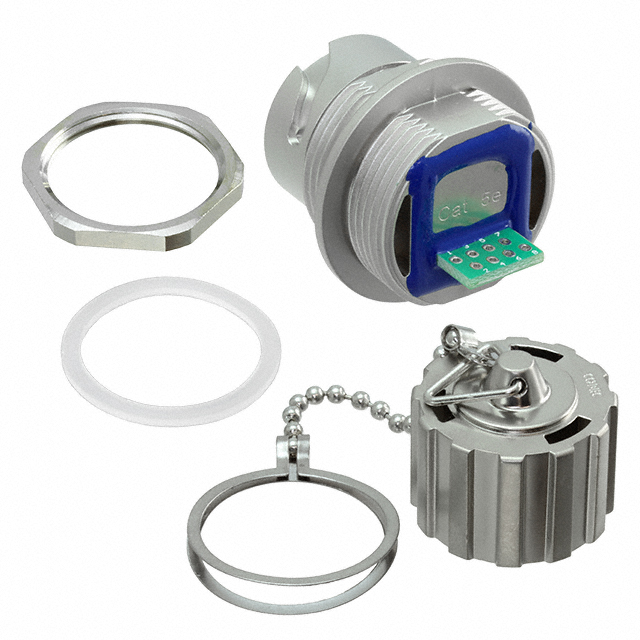

17-102204

Active

Amphenol CONEC

CONN MOD JACK 8P8C SHLD

Search across all available documentation for this part.

Active

Amphenol CONEC

CONN MOD JACK 8P8C SHLD

Technical Specifications

Parameters and characteristics for this part

Specification	17-102204

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	50 µin
Contact Finish Thickness	1.27 µm
Contact Material	Phosphor Bronze
Features	Circular Bayonet Coupling, Potted, Cover
Housing Material	Zinc Die Cast, Nickel Plated
Ingress Protection	IP67 - Dust Tight, Waterproof
LED Color	Does Not Contain LED
Mounting Type	Bulkhead, Panel Mount
Number of Ports	1
Number of Positions/Contacts	8p8c (RJ45, Ethernet)
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	Straight
Ratings	Cat5e
Shielding	Shielded
Tab Direction	User Selectable
Termination	PC Board, Solder

Part	Contact Finish	Mounting Type	Ratings	Ingress Protection	Orientation	Number of Rows	Shielding	Contact Material	LED Color	Number of Ports	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Features	Housing Material	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Tab Direction	Number of Positions/Contacts
Amphenol CONEC 17-102204	Gold	Bulkhead Panel Mount	Cat5e	IP67 - Dust Tight Waterproof	Straight	1	Shielded	Phosphor Bronze	Does Not Contain LED	1	85 °C	-40 °C	PC Board Solder	Circular Bayonet Coupling Cover Potted	Zinc Die Cast Nickel Plated	50 µin	1.27 µm	Jack	User Selectable	8p8c (RJ45 Ethernet)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Jack Modular Connector 8p8c (RJ45, Ethernet) Straight Shielded Cat5e
