794668-4

Obsolete

TE Connectivity AMP Connectors

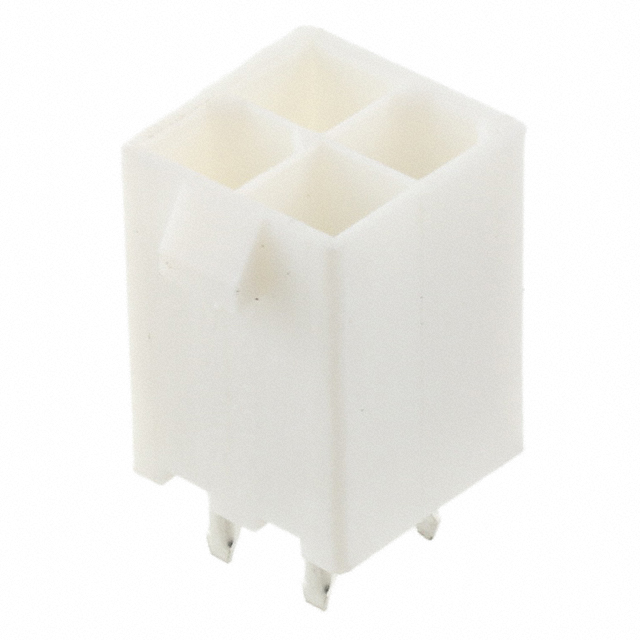

CONN HEADER VERT 4POS 4.2MM

Deep-Dive with AI

Search across all available documentation for this part.

794668-4

Obsolete

TE Connectivity AMP Connectors

CONN HEADER VERT 4POS 4.2MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	794668-4	794668 Series

Connector Type	Header	Header
Contact Finish - Mating	Tin-Lead	Tin-Lead
Contact Finish - Post	Tin-Lead	Tin-Lead
Contact Finish Thickness - Mating	118.1 µin	118.1 µin
Contact Finish Thickness - Mating	3 µm	3 µm
Contact Length - Post	3.5 mm	3.5 mm
Contact Length - Post	0.138 in	0.138 in
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Fastening Type	Locking Ramp	Locking Ramp
Insulation Color	White	White
Insulation Height	12.8 mm	12.8 mm
Insulation Height	0.504 in	0.504 in
Insulation Material	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	4	4 - 20
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	4.2 mm	4.2 mm
Pitch - Mating	0.165 in	0.165 in
Row Spacing - Mating	4.2 mm	4.2 mm
Row Spacing - Mating	0.165 in	0.165 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder
Voltage Rating	600 VAC	600 VAC

794668 Series

CONN HEADER VERT 14POS 4.2MM

Part	Number of Positions Loaded	Number of Rows	Contact Finish - Post	Insulation Color	Mounting Type	Termination	Shrouding	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Material Flammability Rating	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Number of Positions	Voltage Rating	Connector Type	Insulation Material	Style	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Shape	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating
TE Connectivity AMP Connectors 1-794668-4	All	2	Tin-Lead	White	Through Hole	Solder	Shrouded - 4 Wall	3.5 mm	0.138 in	Tin-Lead	UL94 V-0	Copper Alloy	4.2 mm	0.165 in	118.1 µin	3 µm	Locking Ramp	14	600 VAC	Header	Nylon, Polyamide (PA)	Board to Board, Cable	105 ░C	-55 °C	Male Pin	Square	12.8 mm	0.504 in	4.2 mm	0.165 in
TE Connectivity AMP Connectors 794668-4	All	2	Tin-Lead	White	Through Hole	Solder	Shrouded - 4 Wall	3.5 mm	0.138 in	Tin-Lead	UL94 V-0	Copper Alloy	4.2 mm	0.165 in	118.1 µin	3 µm	Locking Ramp	4	600 VAC	Header	Nylon, Polyamide (PA)	Board to Board, Cable	105 ░C	-55 °C	Male Pin	Square	12.8 mm	0.504 in	4.2 mm	0.165 in
TE Connectivity AMP Connectors 1-794668-0	All	2	Tin-Lead	White	Through Hole	Solder	Shrouded - 4 Wall	3.5 mm	0.138 in	Tin-Lead	UL94 V-0	Copper Alloy	4.2 mm	0.165 in	118.1 µin	3 µm	Locking Ramp	10	600 VAC	Header	Nylon, Polyamide (PA)	Board to Board, Cable	105 ░C	-55 °C	Male Pin	Square	12.8 mm	0.504 in	4.2 mm	0.165 in
TE Connectivity AMP Connectors 2-794668-0	All	2	Tin-Lead	White	Through Hole	Solder	Shrouded - 4 Wall	3.5 mm	0.138 in	Tin-Lead	UL94 V-0	Copper Alloy	4.2 mm	0.165 in	118.1 µin	3 µm	Locking Ramp	20	600 VAC	Header	Nylon, Polyamide (PA)	Board to Board, Cable	105 ░C	-55 °C	Male Pin	Square	12.8 mm	0.504 in	4.2 mm	0.165 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

794668 Series

Connector Header Through Hole 4 position 0.165" (4.20mm)

Documents

Technical documentation and resources

No documents available
