12TL1-3

Active

Honeywell Sensing and Productivity Solutions

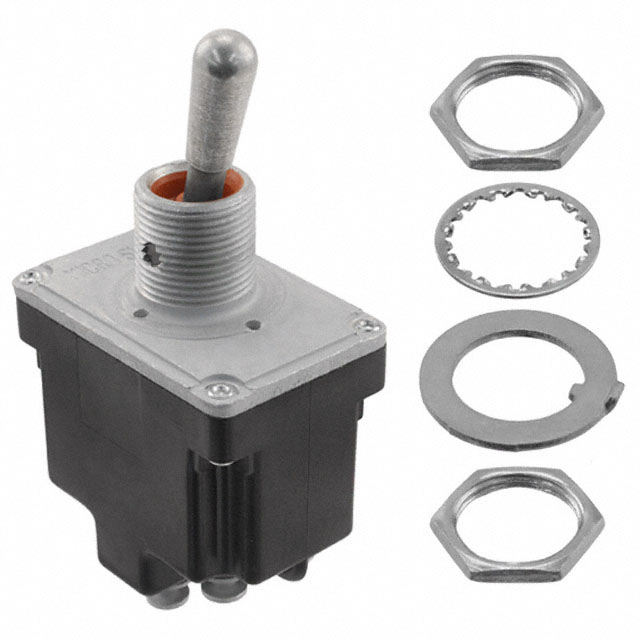

SWITCH TOGGLE DPDT 15A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

12TL1-3

Active

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 15A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.86
		10	$ 46.98

Description

General part information

12TL1 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	12TL1-3	12TL1 Series

Actuator Length [x]	17.27 mm	17.27 - 26.67 mm
Actuator Material	Nickel Plated	Nickel Plated
Actuator Type	Standard Round	Standard Round, Locking Lever
Bushing Thread	15/32-32	15/32-32
Circuit	DPDT	DPDT, SP3T, DPST
Current Rating (Amps)	15 A	10 - 15 A
Features	-	Jumper needed to achieve triple throw
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	Environment Sealed	Environment Sealed
Operating Temperature [Max]	71 °C	71 °C
Operating Temperature [Min]	-65 ░C	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm	12.4 mm
Switch Function	On-On	Mom-On-Mom, On-On, On-On-On, On-Off, On-Mom, On-Off-On
Termination Style	Solder Turret	Solder Turret
Voltage Rating - AC	125 V	125 V

12TL1 Series

SWITCH TOGGLE DPDT 10A 125V

Part	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Panel Cutout Dimensions [diameter]	Termination Style	Bushing Thread	Actuator Type	Illumination	Switch Function	Actuator Material	Circuit	Actuator Length [x]	Voltage Rating - AC	Features
Honeywell Sensing and Productivity Solutions 12TL1-70	10 A	71 °C	-65 ░C	Environment Sealed	12.4 mm	Solder Turret	15/32-32	Standard Round	Non-Illuminated	Mom-On-Mom	Nickel Plated	DPDT	17.27 mm	125 V
Honeywell Sensing and Productivity Solutions 12TL1-3	15 A	71 °C	-65 ░C	Environment Sealed	12.4 mm	Solder Turret	15/32-32	Standard Round	Non-Illuminated	On-On	Nickel Plated	DPDT	17.27 mm	125 V
Honeywell Sensing and Productivity Solutions 12TL1-10	15 A	71 °C	-65 ░C	Environment Sealed	12.4 mm	Solder Turret	15/32-32	Standard Round	Non-Illuminated	On-On-On	Nickel Plated	SP3T	17.27 mm	125 V	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 12TL1-2D	15 A	71 °C	-65 ░C	Environment Sealed	12.4 mm	Solder Turret	15/32-32	Locking Lever	Non-Illuminated	On-Off	Nickel Plated	DPST	26.67 mm	125 V
Honeywell Sensing and Productivity Solutions 12TL1-8	10 A	71 °C	-65 ░C	Environment Sealed	12.4 mm	Solder Turret	15/32-32	Standard Round	Non-Illuminated	On-Mom	Nickel Plated	DPDT	17.27 mm	125 V
Honeywell Sensing and Productivity Solutions 12TL1-1A	15 A	71 °C	-65 ░C	Environment Sealed	12.4 mm	Solder Turret	15/32-32	Locking Lever	Non-Illuminated	On-Off-On	Nickel Plated	DPDT	26.67 mm	125 V
Honeywell Sensing and Productivity Solutions 12TL1-2	15 A	71 °C	-65 ░C	Environment Sealed	12.4 mm	Solder Turret	15/32-32	Standard Round	Non-Illuminated	On-Off	Nickel Plated	DPST	17.27 mm	125 V
Honeywell Sensing and Productivity Solutions 12TL1-31M	15 A	71 °C	-65 ░C	Environment Sealed	12.4 mm	Solder Turret	15/32-32	Locking Lever	Non-Illuminated	On-On	Nickel Plated	DPDT	26.67 mm	125 V
