130E405042PE

Active

METZ CONNECT USA Inc.

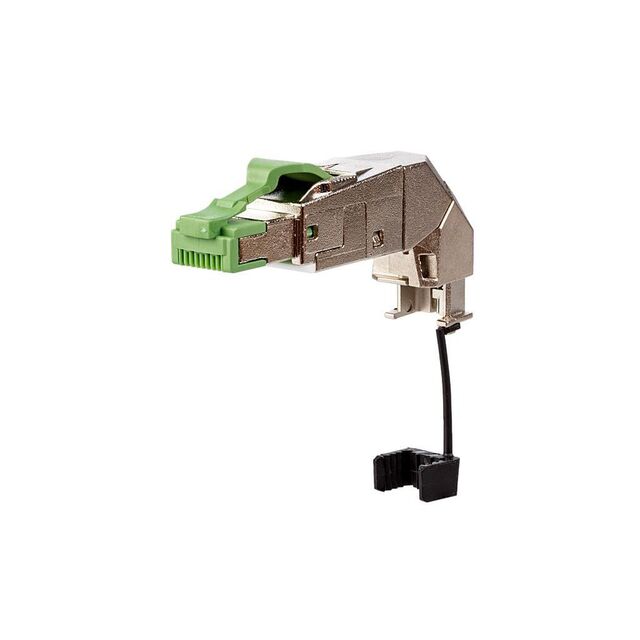

CAT 5 RJ45 FIELD PLUG PRO 2P 360

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

CAT 5 RJ45 FIELD PLUG PRO 2P 360

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	130E405042PE	130E40504 Series

Cable Type	Round Cable, Solid, Stranded Wires	Round Cable, Solid, Stranded Wires
Color	Green	Green, Black
Connector Type	Plug	Plug
Contact Finish	Gold	Gold
Contact Material	Tin Bronze	Tin Bronze
Current Rating (Amps)	1 A	1 A
Features	Housing, Strain Relief, Locking Hook, Angled - 90°	Housing, Strain Relief, Locking Hook, Angled - 90°
Housing Material	Zinc Die Cast	Zinc Die Cast
Length [x]	1.961 in	1.96 - 1.961 in
Length [x]	49.8 mm	49.78 - 49.8 mm
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Number of Positions/Contacts [custom]	4	4
Number of Positions/Contacts [custom]	8	8
Ratings	Cat5	Cat5, Cat6a
Shielding	Shielded	Shielded
Termination	IDC	IDC
Voltage Rating	50 V	50 V
Wire Gauge [Max]	27 AWG	27 AWG
Wire Gauge [Min]	22 AWG	22 AWG

CAT 5 RJ45 FIELD PLUG PRO 2P 360

Part	Contact Material	Cable Type	Voltage Rating	Color	Contact Finish	Connector Type	Features	Wire Gauge [Min]	Wire Gauge [Max]	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Termination	Shielding	Length [x]	Length [x]	Ratings	Current Rating (Amps)	Housing Material	Number of Positions/Contacts
METZ CONNECT USA Inc. 130E405042PE	Tin Bronze	Round Cable, Solid, Stranded Wires	50 V	Green	Gold	Plug	Angled - 90°, Housing, Locking Hook, Strain Relief	22 AWG	27 AWG	4	8	IDC	Shielded	1.961 in	49.8 mm	Cat5	1 A	Zinc Die Cast
METZ CONNECT USA Inc. 130E405042-E	Tin Bronze	Round Cable, Solid, Stranded Wires	50 V	Black	Gold	Plug	Angled - 90°, Housing, Locking Hook, Strain Relief	22 AWG	27 AWG			IDC	Shielded	1.96 "	49.78 mm	Cat6a	1 A	Zinc Die Cast	8p8c (RJ45, Ethernet)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 22.82

General part information

Plug Modular Connector 8p4c (RJ45, Ethernet) Position Shielded Cat5 IDC
