BY25Q40GLUIG(R)

Active

BYTe Semiconductor

IC FLASH 4MBIT SPI/QUAD 8USON

Search across all available documentation for this part.

Active

BYTe Semiconductor

IC FLASH 4MBIT SPI/QUAD 8USON

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	BY25Q40GLUIG(R)	BY25Q40 Series

Access Time	17 ns	17 ns
Clock Frequency	50 MHz	50 - 100 MHz
Memory Format	FLASH	FLASH
Memory Interface	SPI - Quad I/O	SPI - Quad I/O
Memory Organization	512 K	512 K
Memory Size	512 kb	512 kb
Memory Type	Non-Volatile	Non-Volatile
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C

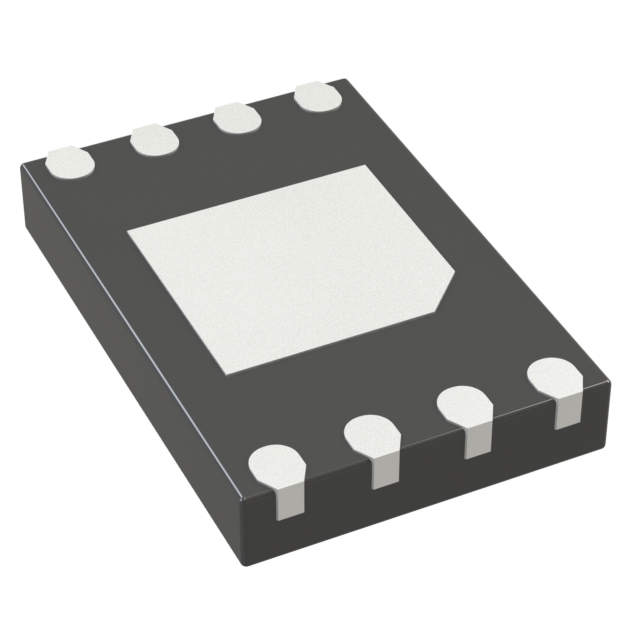

Package / Case	8-UFDFN Exposed Pad	8-UFDFN Exposed Pad, 8-SOIC
Package / Case	-	3.9 - 5.3 mm
Package / Case	-	0.154 - 0.209 in
Supplier Device Package	8-USON (2x3)	8-USON (2x3), 8-SOP
Technology	FLASH - NOR	FLASH - NOR
Voltage - Supply [Max]	2 V	2 - 3.6 V
Voltage - Supply [Min]	1.65 V	1.65 V
Write Cycle Time - Word, Page	-	3 ms
Write Cycle Time - Word, Page [custom]	3 ms	3 ms
Write Cycle Time - Word, Page [custom]	3 ms	3 ms

IC FLASH 4MBIT SPI/QUAD 8USON

Part	Write Cycle Time - Word, Page [custom]	Write Cycle Time - Word, Page [custom]	Supplier Device Package	Technology	Voltage - Supply [Max]	Voltage - Supply [Min]	Memory Size	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Clock Frequency	Access Time	Memory Type	Memory Organization	Memory Interface	Memory Format	Mounting Type	Package / Case [y]	Package / Case [x]	Write Cycle Time - Word, Page
BYTe Semiconductor BY25Q40GLUIG(R)	3 ms	3 ms	8-USON (2x3)	FLASH - NOR	2 V	1.65 V	512 kb	8-UFDFN Exposed Pad	85 °C	-40 °C	50 MHz	17 ns	Non-Volatile	512 K	SPI - Quad I/O	FLASH	Surface Mount
BYTe Semiconductor BY25Q40GWTIG(R)			8-SOP	FLASH - NOR	3.6 V	1.65 V	512 kb	8-SOIC	85 °C	-40 °C	100 MHz	17 ns	Non-Volatile	512 K	SPI - Quad I/O	FLASH	Surface Mount	3.9 mm	0.154 in	3 ms
BYTe Semiconductor BY25Q40GWSIG(R)			8-SOP	FLASH - NOR	3.6 V	1.65 V	512 kb	8-SOIC	85 °C	-40 °C	100 MHz	17 ns	Non-Volatile	512 K	SPI - Quad I/O	FLASH	Surface Mount	5.3 mm	0.209 "	3 ms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

FLASH - NOR Memory IC 4Mbit SPI - Quad I/O 50 MHz 17 ns 8-USON (2x3)
