HW-02-17-T-S-252-SM

Active

Samtec Inc.

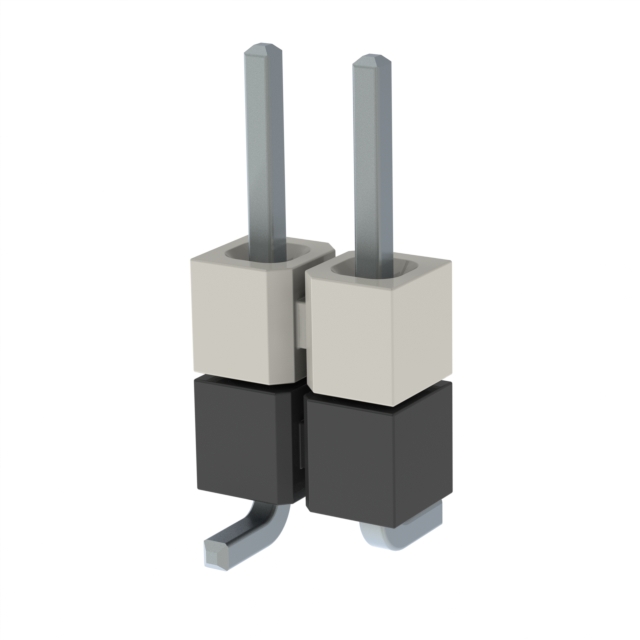

CONN BRD STACK .100" 2POS

Search across all available documentation for this part.

Active

Samtec Inc.

CONN BRD STACK .100" 2POS

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness - Post (Mating)	Contact Finish Thickness - Post (Mating)	Length - Overall Pin [x]	Length - Overall Pin [x]	Contact Finish - Post (Mating)	Length - Post (Mating) [x]	Length - Post (Mating) [x]	Number of Rows	Color	Number of Positions	Termination	Length - Stack Height [x]	Length - Stack Height [x]	Mounting Type	Pitch [x]	Pitch [x]	Row Spacing [x]	Row Spacing	Length - Tail [x]	Length - Tail [x]	Length - Overall Pin
Samtec Inc. HW-02-17-F-S-250-SM	3 Áin	0.076 Ám	0.415 in	10.541 mm	Gold	0.165 in	4.191 mm	1	Black	2	Solder	0.25 in	6.35 mm	Surface Mount	2.54 mm	0.1 in
Samtec Inc. HW-02-17-G-D-250-SM	10 Áin	0.25 Ám	0.415 in	10.541 mm	Gold	0.165 in	4.191 mm	2	Black	4	Solder	0.25 in	6.35 mm	Surface Mount	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. HW-02-17-F-D-330-SM	3 Áin	0.076 Ám	0.415 in	10.541 mm	Gold	0.085 in	2.159 mm	2	Black	4	Solder	0.33 in	8.382 mm	Surface Mount	2.54 mm	0.1 in	0.1 in	2.54 mm
Samtec Inc. HW-02-17-F-S-251-SM	3 Áin	0.076 Ám	0.415 in	10.541 mm	Gold	0.164 in	4.166 mm	1	Black	2	Solder	0.251 in	6.375 mm	Surface Mount	2.54 mm	0.1 in
Samtec Inc. HW-02-17-S-S-280-100	30 µin	0.76 µm	0.48 in		Gold	0.1 in	2.54 mm	1	Black	2	Solder	0.28 in	7.112 mm	Through Hole	2.54 mm	0.1 in			0.1 "	2.54 mm	12.192 mm
Samtec Inc. HW-02-17-T-S-252-SM			0.415 in	10.541 mm	Tin	0.163 in	4.14 mm	1	Black	2	Solder	0.252 in	6.4 mm	Surface Mount	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.36

General part information

2 Position Header Spacer Connector 0.100" (2.54mm) Tin Surface Mount
