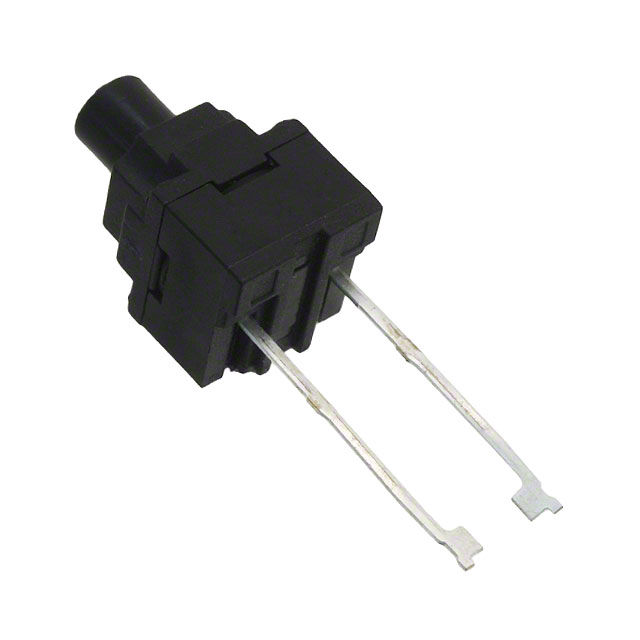

TL52AF260Q

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

E-Switch

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	TL52AF260Q

Actuator Height off PCB, Vertical [z]	13 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	100000 Cycles
Mounting Type	Through Hole
Operating Force	260 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Outline [x]	8 mm
Outline [y]	8 mm
Switch Function	Off-Mom
Switch Travel [custom]	0.3 mm
Termination Style	PC Pin

Part	Actuator Type	Operating Force	Ingress Protection	Contact Rating @ Voltage	Circuit	Switch Travel [custom]	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Outline [y]	Outline [x]	Mechanical Life	Termination Style	Actuator Orientation	Illumination	Actuator Height off PCB, Vertical [z]
E-Switch TL52AF260Q	Standard	260 gf	IP67 - Dust Tight Waterproof	0.05 A 12 VDC	SPST-NO	0.3 mm	Off-Mom	-25 °C	85 °C	Through Hole	8 mm	8 mm	100000 Cycles	PC Pin	Top Actuated	Non-Illuminated	13 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

No documents available
