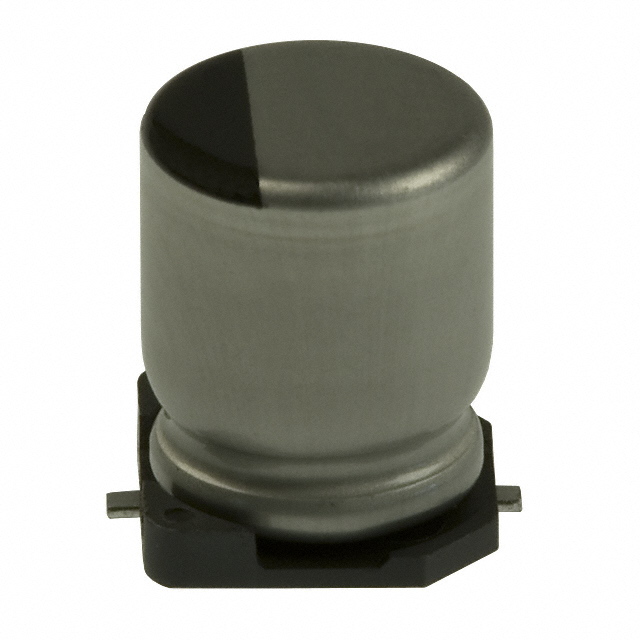

TYEH1H225D55MTR

Active

TE Connectivity Passive Product

CAP ALUM 2.2UF 20% 50V SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TYEH1H225D55MTR

Active

TE Connectivity Passive Product

CAP ALUM 2.2UF 20% 50V SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

TYEH1 Series

2.2 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 105°C

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TYEH1H225D55MTR	TYEH1 Series

Applications	General Purpose	General Purpose
Capacitance	2.2 µF	1 - 330 µF
Height - Seated (Max)	-	0.394 in
Height - Seated (Max)	-	10 mm
Height - Seated (Max) [Max] [z]	5.3 mm	5.3 mm
Height - Seated (Max) [Max] [z]	0.209 in	0.209 in
Lifetime @ Temp.	1000 Hrs	1000 - 2000 Hrs
Mounting Type	Surface Mount	Surface Mount
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can - SMD	Radial, Can - SMD
Ripple Current @ High Frequency	15 mA	10.5 - 39 mA
Ripple Current @ Low Frequency	10 mA	7 - 350 mA
Size / Dimension [diameter]	4 mm	4 - 10 mm
Size / Dimension [diameter]	0.157 in	0.157 - 0.394 in
Surface Mount Land Size [x]	4.3 mm	4.3 - 6.6 mm
Surface Mount Land Size [x]	0.169 in	0.169 - 0.26 in
Surface Mount Land Size [y]	0.169 "	0.169 - 0.26 in
Surface Mount Land Size [y]	4.3 mm	4.3 - 6.6 mm
Tolerance	20 %	20 %
Voltage - Rated	50 VDC	10 - 50 VDC

TYEH1 Series

CAP ALUM 10UF 20% 50V SMD

Part	Capacitance	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Ripple Current @ High Frequency	Tolerance	Lifetime @ Temp.	Applications	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
TE Connectivity Passive Product TYEH1H106F55MTR	10 µF	26 mA	5.3 mm	0.209 in	0.248 in	6.3 mm	0.26 in	6.6 mm	6.6 mm	0.26 in	50 VDC	-40 °C	105 ░C	Surface Mount	39 mA	20 %	1000 Hrs	General Purpose	Radial, Can - SMD
TE Connectivity Passive Product TYEH1C476F55MTR	47 µF	47 mA	5.3 mm	0.209 in	0.248 in	6.3 mm	0.26 in	6.6 mm	6.6 mm	0.26 in	16 V	-40 °C	105 ░C	Surface Mount		20 %	1000 Hrs	General Purpose	Radial, Can - SMD
TE Connectivity Passive Product TYEH1V226F55MTR	22 µF	50 mA	5.3 mm	0.209 in	0.197 "	5 mm	0.209 in	5.3 mm	5.3 mm	0.209 in	35 V	-40 °C	105 ░C	Surface Mount		20 %	1000 Hrs	General Purpose	Radial, Can - SMD
TE Connectivity Passive Product TYEH1V106E55MTR	10 µF	23 mA	5.3 mm	0.209 in	0.197 "	5 mm	0.209 in	5.3 mm	5.3 mm	0.209 in	35 V	-40 °C	105 ░C	Surface Mount	32.2 mA	20 %	1000 Hrs	General Purpose	Radial, Can - SMD
TE Connectivity Passive Product TYEH1H225D55MTR	2.2 µF	10 mA	5.3 mm	0.209 in	0.157 in	4 mm	0.169 "	4.3 mm	4.3 mm	0.169 in	50 VDC	-40 °C	105 ░C	Surface Mount	15 mA	20 %	1000 Hrs	General Purpose	Radial, Can - SMD
TE Connectivity Passive Product TYEH1V337H10MTR	330 µF	350 mA			0.394 in	10 mm					35 V	-40 °C	105 ░C	Surface Mount		20 %	2000 Hrs	General Purpose	Radial, Can - SMD	0.394 in	10 mm
TE Connectivity Passive Product TYEH1H105D55MTR	1 µF	7 mA	5.3 mm	0.209 in	0.157 in	4 mm	0.169 "	4.3 mm	4.3 mm	0.169 in	50 VDC	-40 °C	105 ░C	Surface Mount	10.5 mA	20 %	1000 Hrs	General Purpose	Radial, Can - SMD
TE Connectivity Passive Product TYEH1A336E55MTR	33 ÁF	31 mA	5.3 mm	0.209 in	0.197 "	5 mm	0.209 in	5.3 mm	5.3 mm	0.209 in	10 V	-40 °C	105 ░C	Surface Mount		20 %	1000 Hrs	General Purpose	Radial, Can - SMD
