1217124-1
ActiveTE Connectivity AMP Connectors

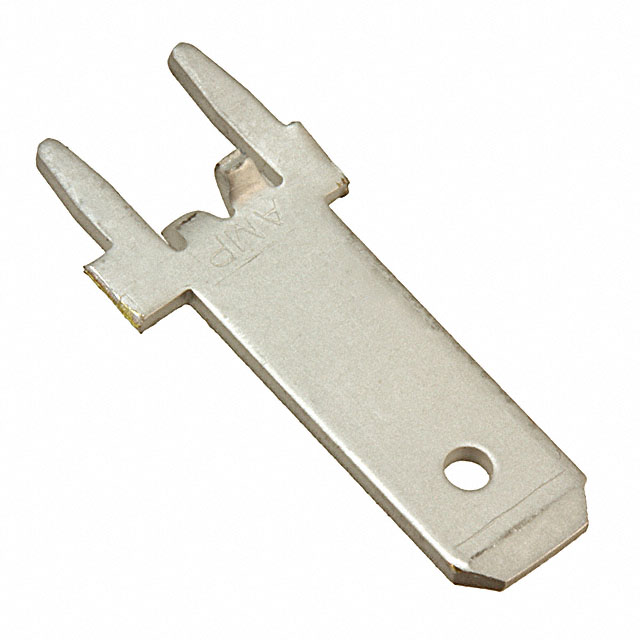

CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1217124-1
ActiveTE Connectivity AMP Connectors
CONN QC TAB 0.187 SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1217124-1 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Gender | Male |
| Insulation | Non-Insulated |
| Length - Overall | 18.03 mm |
| Length - Overall | 0.71 " |
| Mounting Type | Through Hole |
| Tab Length | 11.94 mm |
| Tab Length | 0.47 in |
| Tab Thickness | 0.032 in |
| Tab Thickness | 0.81 mm |
| Tab Width | 4.75 mm |
| Tab Width | 0.187 in |
| Terminal Type | Standard |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.25 | |
| 10 | $ 0.21 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.17 | |||
| 250 | $ 0.16 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.15 | |||
| 2500 | $ 0.13 | |||
| Tape & Reel (TR) | 10000 | $ 0.11 | ||
| 30000 | $ 0.10 | |||
| 50000 | $ 0.08 | |||
1217124 Series
CONN QC TAB 0.187 SOLDER
| Part | Insulation | Length - Overall | Length - Overall | Mounting Type | Terminal Type | Tab Length | Tab Length | Gender | Termination | Contact Material | Contact Finish | Tab Width | Tab Width | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 1217124-1 | Non-Insulated | 18.03 mm | 0.71 " | Through Hole | Standard | 11.94 mm | 0.47 in | Male | Solder | Brass | Tin | 4.75 mm | 0.187 in | 0.032 in | 0.81 mm |
Description
General part information
1217124 Series
0.187" (4.75mm) Quick Connect Male Solder Connector Non-Insulated
