TDN 1-1211WI

Active

Traco Power

DC DC CONVERTER 5V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

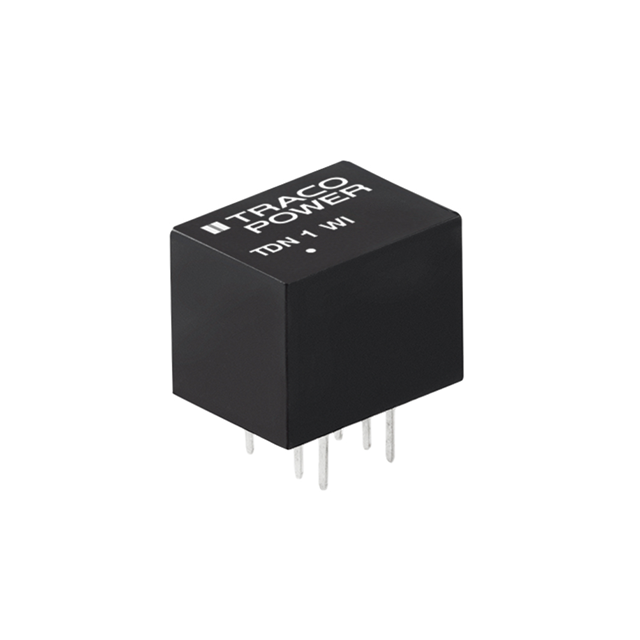

TDN 1-1211WI

Active

Traco Power

DC DC CONVERTER 5V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 17.75
		10	$ 16.31
		25	$ 15.78
		50	$ 15.38
		100	$ 14.99
		250	$ 14.50
		500	$ 14.14

Description

General part information

TDN 1 Series

Isolated Module DC DC Converter 1 Output 5V 200mA 4.5V - 18V Input

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TDN 1-1211WI	TDN 1 Series

Applications	ITE (Commercial)	ITE (Commercial)
Current - Output (Max)	-	100 mA
Current - Output (Max)	-	35 - 100 mA
Current - Output (Max) [Max]	200 mA	45 - 300 mA
Efficiency	79 %	76 - 81 %
Features	Remote On/Off, SCP	Remote On/Off, SCP
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Outputs	1	1 - 2
Operating Temperature [Max]	90 °C	90 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	7-DIP Module, 6 Leads	7-DIP Module, 6 Leads, 7-SMD Module, 6 Leads
Power (Watts)	-	1.1 W
Size / Dimension [x]	13.2 mm	13.2 mm
Size / Dimension [x]	0.52 in	0.52 in
Size / Dimension [y]	9.1 mm	9.1 mm
Size / Dimension [y]	0.36 "	0.36 "
Size / Dimension [z]	10.2 mm	10.2 mm
Size / Dimension [z]	0.4 "	0.4 "
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	18 V	18 - 75 V
Voltage - Input (Min) [Min]	4.5 V	4.5 - 18 V
Voltage - Isolation	1.6 kV	1.6 kV
Voltage - Output 1	5 V	3.3 - 24 V
Voltage - Output 2	-	-15 - -5 V

TDN 1 Series

DC DC CONVERTER 15V 1.1W

Part	Voltage - Input (Max) [Max]	Features	Mounting Type	Applications	Voltage - Isolation	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Efficiency	Voltage - Input (Min) [Min]	Package / Case	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Power (Watts)	Current - Output (Max) [Max]	Type	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)
Traco Power TDN 1-2413WI	36 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	81 %	9 V	7-DIP Module, 6 Leads	1	90 °C	-40 °C	15 V	1.1 W	70 mA	Isolated Module
Traco Power TDN 1-2410WI	36 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	76 %	9 V	7-DIP Module, 6 Leads	1	90 °C	-40 °C	3.3 V		300 mA	Isolated Module
Traco Power TDN 1-4815WISM	75 V	Remote On/Off, SCP	Surface Mount	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	80 %	18 V	7-SMD Module, 6 Leads	1	90 °C	-40 °C	24 V	1.1 W	45 mA	Isolated Module
Traco Power TDN 1-2411WISM	36 V	Remote On/Off, SCP	Surface Mount	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	78 %	9 V	7-SMD Module, 6 Leads	1	90 °C	-40 °C	5 V		200 mA	Isolated Module
Traco Power TDN 1-4821WI	75 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	77 %	18 V	7-DIP Module, 6 Leads	2	90 °C	-40 °C	5 V			Isolated Module	-5 V	100 mA	100 mA
Traco Power TDN 1-2419WI	36 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	79 %	9 V	7-DIP Module, 6 Leads	1	90 °C	-40 °C	9 V		112 mA	Isolated Module
Traco Power TDN 1-2421WI	36 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	77 %	9 V	7-DIP Module, 6 Leads	2	90 °C	-40 °C	5 V			Isolated Module	-5 V	100 mA	100 mA
Traco Power TDN 1-2419WISM	36 V	Remote On/Off, SCP	Surface Mount	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	79 %	9 V	7-SMD Module, 6 Leads	1	90 °C	-40 °C	9 V		112 mA	Isolated Module
Traco Power TDN 1-2413WISM	36 V	Remote On/Off, SCP	Surface Mount	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	81 %	9 V	7-SMD Module, 6 Leads	1	90 °C	-40 °C	15 V	1.1 W	70 mA	Isolated Module
Traco Power TDN 1-1215WI	18 V	Remote On/Off, SCP	Through Hole	ITE (Commercial)	1.6 kV	10.2 mm	0.4 "	13.2 mm	9.1 mm	0.52 in	0.36 "	80 %	4.5 V	7-DIP Module, 6 Leads	1	90 °C	-40 °C	24 V	1.1 W	45 mA	Isolated Module
