163A11309X

Active

Amphenol CONEC

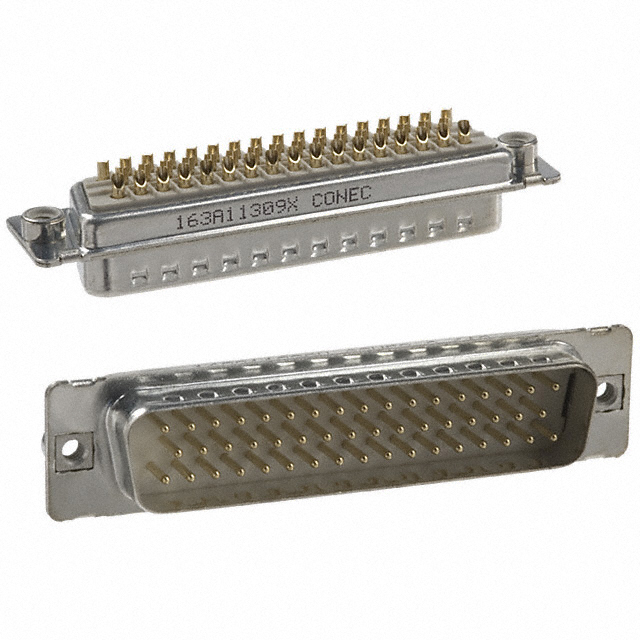

CONN D-SUB PLUG 50POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

163A11309X

Active

Amphenol CONEC

CONN D-SUB PLUG 50POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	163A11309X

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Features	Grounding Indents
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	50
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	5
Voltage Rating	125 VDC
Wire Gauge	20 AWG

163A113 Series

Part	Features	Current Rating (Amps)	Number of Rows	Termination	Flange Feature	Contact Type	Contact Finish	Number of Positions	Connector Type	Mounting Type	Shell Size, Connector Layout	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Color	Material Flammability Rating	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Wire Gauge	Shell Size, Connector Layout
Amphenol CONEC 163A11399X	Grounding Indents	7.5 A	2	Solder	4-40 Board Side	Signal	Gold	37	Male Pins Plug	Through Hole	4 (DC C)	D-Sub	8 çin	0.203 çm	Copper Alloy	Black	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	125 VDC
Amphenol CONEC 163A11369X	Grounding Indents	7.5 A	2	Solder	4-40 Board Side	Signal	Gold	9	Male Pins Plug	Through Hole		D-Sub	8 çin	0.203 çm	Copper Alloy	Black	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	125 VDC	DE E	1
Amphenol CONEC 163A11349X	Grounding Indents	7.5 A	2		Cable Side (M3)	Signal	Gold	37	Male Pins Plug	Free Hanging (In-Line)	4 (DC C)	D-Sub	8 çin	0.203 çm	Copper Alloy	Black	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	125 VDC			20 AWG
Amphenol CONEC 163A11379X	Grounding Indents	7.5 A	2	Solder	4-40 Board Side	Signal	Gold	15	Male Pins Plug	Through Hole		D-Sub	8 çin	0.203 çm	Copper Alloy	Black	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	125 VDC				2
Amphenol CONEC 163A11319X	Grounding Indents	7.5 A	2		Cable Side (M3)	Signal	Gold	9	Male Pins Plug	Free Hanging (In-Line)		D-Sub	8 çin	0.203 çm	Copper Alloy	Black	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	125 VDC	DE E	1	20 AWG
Amphenol CONEC 163A11309X	Grounding Indents	7.5 A	3		Cable Side	Signal	Gold	50	Male Pins Plug	Free Hanging (In-Line)		D-Sub	8 çin	0.203 çm	Copper Alloy	Black	UL94 V-0	Polybutylene Terephthalate (PBT) Glass Filled	-55 °C	125 °C	125 VDC			20 AWG	5

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	40	$ 13.13

Description

General part information

163A113 Series

50 Position D-Sub Plug, Male Pins Connector
