796980-5
ActiveTE Connectivity AMP Connectors

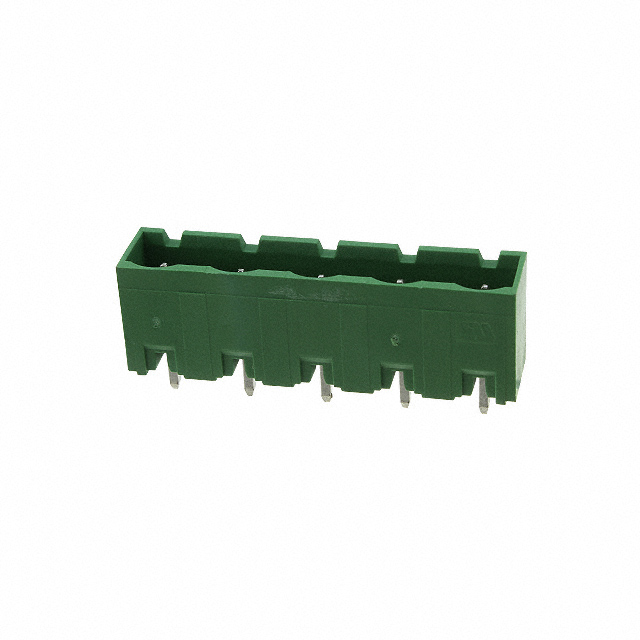

TERM BLOCK HDR 5POS VERT 7.62MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796980-5
ActiveTE Connectivity AMP Connectors
TERM BLOCK HDR 5POS VERT 7.62MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796980-5 | 796980 Series |
|---|---|---|
| Color | Green | Green |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Mating Finish | Tin | Tin |
| Contact Tail Length | 3.5 mm | 3.5 mm |
| Contact Tail Length | 0.138 in | 0.138 in |
| Header Orientation | Vertical | Vertical |
| Insulation Height | 0.472 in | 0.472 in |
| Insulation Height | 12 mm | 12 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Levels | 1 | 1 |
| Number of Positions | - | 2 - 10 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.3 in | 0.3 in |
| Pitch [x] | 7.62 mm | 7.62 mm |
| Positions Per Level | 5 | 2 - 10 |
| Termination Style | Solder | Solder |
| Type | Header, Male Pins, Shrouded (4 Side) | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V | 300 V |
796980 Series
TERM BLOCK HDR 8POS VERT 7.62MM
| Part | Insulation Height | Insulation Height | Contact Mating Finish | Contact Tail Length | Contact Tail Length | Pitch [x] | Pitch [x] | Material Flammability Rating | Number of Levels | Positions Per Level | Number of Positions | Contact Material | Voltage - UL | Type | Header Orientation | Termination Style | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796980-8 | 0.472 in | 12 mm | Tin | 3.5 mm | 0.138 in | 0.3 in | 7.62 mm | UL94 V-0 | 1 | 8 | 8 | Copper Alloy | 300 V | Header, Male Pins, Shrouded (4 Side) | Vertical | Solder | Through Hole | -40 °C | 110 °C | Green |
TE Connectivity AMP Connectors 1-796980-0 | 0.472 in | 12 mm | Tin | 3.5 mm | 0.138 in | 0.3 in | 7.62 mm | UL94 V-0 | 1 | 10 | 10 | Copper Alloy | 300 V | Header, Male Pins, Shrouded (4 Side) | Vertical | Solder | Through Hole | -40 °C | 110 °C | Green |
TE Connectivity AMP Connectors 796980-6 | 0.472 in | 12 mm | Tin | 3.5 mm | 0.138 in | 0.3 in | 7.62 mm | UL94 V-0 | 1 | 6 | 6 | Copper Alloy | 300 V | Header, Male Pins, Shrouded (4 Side) | Vertical | Solder | Through Hole | -40 °C | 110 °C | Green |
TE Connectivity AMP Connectors 796980-5 | 0.472 in | 12 mm | Tin | 3.5 mm | 0.138 in | 0.3 in | 7.62 mm | UL94 V-0 | 1 | 5 | Copper Alloy | 300 V | Header, Male Pins, Shrouded (4 Side) | Vertical | Solder | Through Hole | -40 °C | 110 °C | Green | |
TE Connectivity AMP Connectors 796980-9 | 0.472 in | 12 mm | Tin | 3.5 mm | 0.138 in | 0.3 in | 7.62 mm | UL94 V-0 | 1 | 9 | 9 | Copper Alloy | 300 V | Header, Male Pins, Shrouded (4 Side) | Vertical | Solder | Through Hole | -40 °C | 110 °C | Green |
TE Connectivity AMP Connectors 796980-2 | 0.472 in | 12 mm | Tin | 3.5 mm | 0.138 in | 0.3 in | 7.62 mm | UL94 V-0 | 1 | 2 | 2 | Copper Alloy | 300 V | Header, Male Pins, Shrouded (4 Side) | Vertical | Solder | Through Hole | -40 °C | 110 °C | Green |
TE Connectivity AMP Connectors 796980-3 | 0.472 in | 12 mm | Tin | 3.5 mm | 0.138 in | 0.3 in | 7.62 mm | UL94 V-0 | 1 | 3 | Copper Alloy | 300 V | Header, Male Pins, Shrouded (4 Side) | Vertical | Solder | Through Hole | -40 °C | 110 °C | Green |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.49 | |
| 10 | $ 1.32 | |||
| 25 | $ 1.32 | |||
| 50 | $ 1.30 | |||
| 100 | $ 1.20 | |||
| 300 | $ 1.19 | |||
| 500 | $ 1.18 | |||
Description
General part information
796980 Series
5 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.300" (7.62mm) Vertical Through Hole
