826-22-020-00-005000
ActiveMill-Max Manufacturing Corp.
CONN SPRING PISTON 20POS SLD PCB
826-22-020-00-005000
ActiveMill-Max Manufacturing Corp.
CONN SPRING PISTON 20POS SLD PCB
Description
General part information
826-22 Series

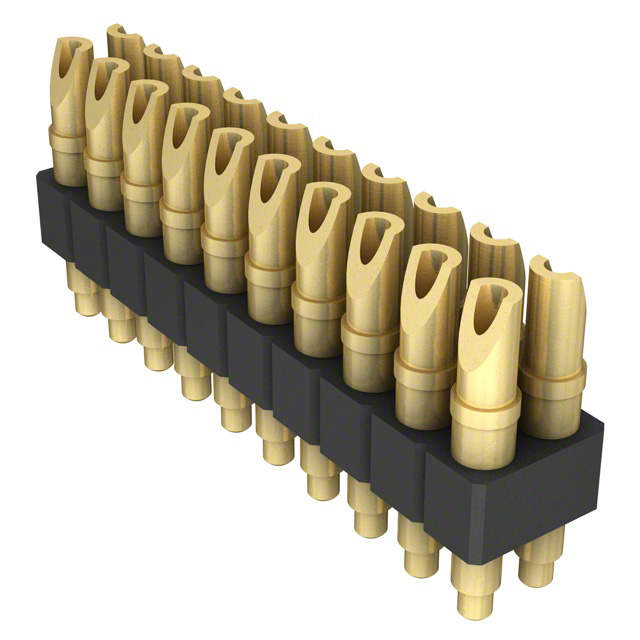

20 Position Spring Piston Connector Through Hole, Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 826-22-020-00-005000 |
|---|---|
| Connector Type | Piston |
| Contact Finish | Gold |
| Contact Finish Thickness | 20 µin |
| Material | Beryllium Copper |
| Mounting Type | Solder Cup, Through Hole |
| Number of Contacts | 20 |
| Number of Rows | 2 |
| Pitch | 0.1 in |
| Row Spacing | 0.1 in |
