STEVAL-ILL005V1
ActiveSTMicroelectronics
EVAL BOARD FOR VIPER12A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | STEVAL-ILL005V1 | VIPER12 Series |
|---|---|---|
| - | - | |
| Current - Output / Channel | 1.05 A, 350 mA, 700 mA | 1.05 - 700 A |
| Fault Protection | - | Over Temperature, Current Limiting, Over Voltage |
| Frequency - Switching | - | 60 kHz |
| Internal Switch(s) | - | True |
| Mounting Type | - | Surface Mount |
| Operating Temperature | - | -40 °C |
| Operating Temperature | - | 150 °C |
| Output Isolation | - | Non-Isolated |
| Outputs and Type | Isolated | Isolated |
| Outputs and Type | 1 | 1 |
| Package / Case | - | 8-SOIC |
| Package / Case | - | 3.9 mm |
| Package / Case | - | 0.154 in |
| Power (Watts) | - | 8 W |
| Supplied Contents | Board(s) | Board(s) |
| Supplier Device Package | - | 8-SOIC |
| Voltage - Breakdown | - | 730 V |
| Voltage - Input [Max] | 264 VAC | 264 VAC |
| Voltage - Input [Min] | 90 VAC | 90 VAC |
| Voltage - Output | 16 V | 16 V |
| Voltage - Start Up | - | 14.5 V |
| Voltage - Supply (Vcc/Vdd) | - | 9 V |
| Voltage - Supply (Vcc/Vdd) | - | 38 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.06 | |
VIPER12 Series
IC OFFLINE SWITCH 8SOIC
| Part | Power (Watts) | Supplier Device Package | Voltage - Supply (Vcc/Vdd) [Min] | Voltage - Supply (Vcc/Vdd) [Max] | Mounting Type | Output Isolation | Package / Case | Package / Case [y] | Package / Case [x] | Fault Protection | Internal Switch(s) | Voltage - Start Up | Voltage - Breakdown | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Switching | Outputs and Type | Outputs and Type | Supplied Contents | Voltage - Output | Current - Output / Channel | Voltage - Input [Min] | Voltage - Input [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VIPER12AS | 8 W | 8-SOIC | 9 V | 38 V | Surface Mount | Non-Isolated | 8-SOIC | 3.9 mm | 0.154 in | Current Limiting, Over Temperature, Over Voltage | 14.5 V | 730 V | -40 °C | 150 °C | 60 kHz | ||||||||
STMicroelectronics STEVAL-ILL005V1 | Isolated | 1 | Board(s) | 16 V | 1.05 A, 350 mA, 700 mA | 90 VAC | 264 VAC | ||||||||||||||||
STMicroelectronics VIPER12-LED-EV |
Description
General part information
VIPER12 Series

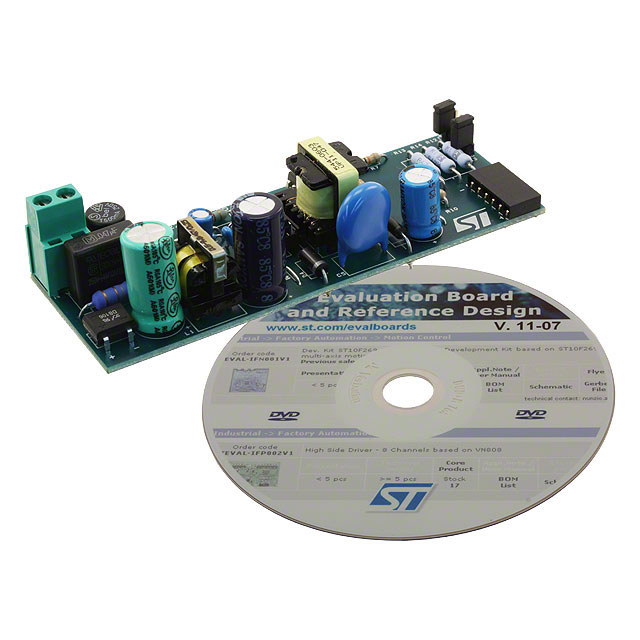

VIPer12A-E 1, Isolated Outputs LED Driver Evaluation Board
