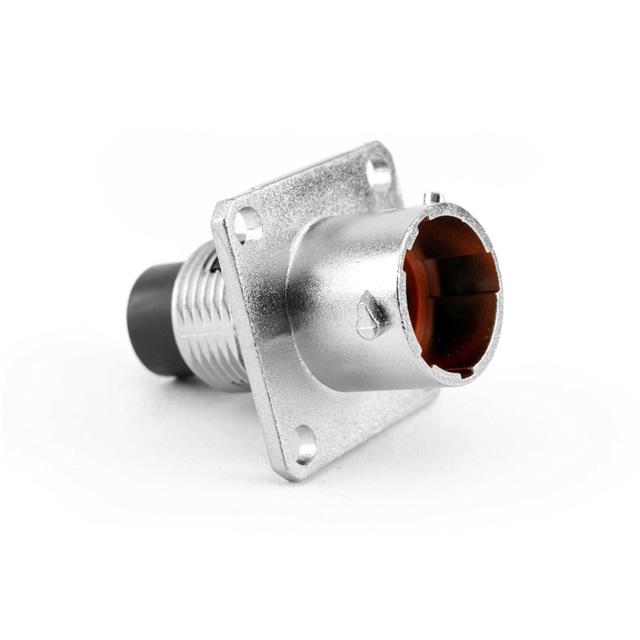

RT00103W3PNH03

Active

Amphenol Sine Systems Corp

RECEPTACLE, SQUARE FLANGE, 6 (3+

Search across all available documentation for this part.

Active

Amphenol Sine Systems Corp

RECEPTACLE, SQUARE FLANGE, 6 (3+

Technical Specifications

Parameters and characteristics for this part

Specification	RT00103W3PNH03

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	20 (3), 16 (3)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	10-3W3
Shielding	Shielded
Type	For Male Pins

Part	Insert Material	Primary Material	Material Flammability Rating	Shell Finish	Contact Type	Mounting Feature	Contact Shape	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Shell Size - Insert	Type	Orientation	Shielding	Ingress Protection	Note	Housing Color	Number of Positions	Shell Material	Contact Size
Amphenol Sine Systems Corp RT00103W3SNH	Thermoplastic	Metal	UL94 V-0	Nickel	Crimp	Flange	Circular	Bayonet Lock	-40 °C	105 ░C	Receptacle Housing	10-3W3	For Female Sockets	N	Shielded	IP67 - Dust Tight Waterproof	Contacts Not Included	Silver	6	Zinc Alloy	16 (3) 20 (3)
Amphenol Sine Systems Corp RT00103PNH
Amphenol Sine Systems Corp RT00103SNH
Amphenol Sine Systems Corp RT00103W3PNH	Thermoplastic	Metal	UL94 V-0	Nickel	Crimp	Flange	Circular	Bayonet Lock	-40 °C	105 ░C	Receptacle Housing	10-3W3	For Male Pins	N	Shielded	IP67 - Dust Tight Waterproof	Contacts Not Included	Silver	6	Zinc Alloy	16 (3) 20 (3)
Amphenol Sine Systems Corp RT00103PNH03
Amphenol Sine Systems Corp RT00103W3SNH03	Thermoplastic	Metal	UL94 V-0	Nickel	Crimp	Flange	Circular	Bayonet Lock	-40 °C	125 °C	Receptacle Housing	10-3W3	For Female Sockets	N	Shielded	IP67 - Dust Tight Waterproof	Contacts Not Included	Silver	6	Zinc Alloy	16 (3) 20 (3)
Amphenol Sine Systems Corp RT00103W3PNH03	Thermoplastic	Metal	UL94 V-0	Nickel	Crimp	Flange	Circular	Bayonet Lock	-40 °C	125 °C	Receptacle Housing	10-3W3	For Male Pins	N	Shielded	IP67 - Dust Tight Waterproof	Contacts Not Included	Silver	6	Zinc Alloy	16 (3) 20 (3)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Receptacle Housing Panel Mount
