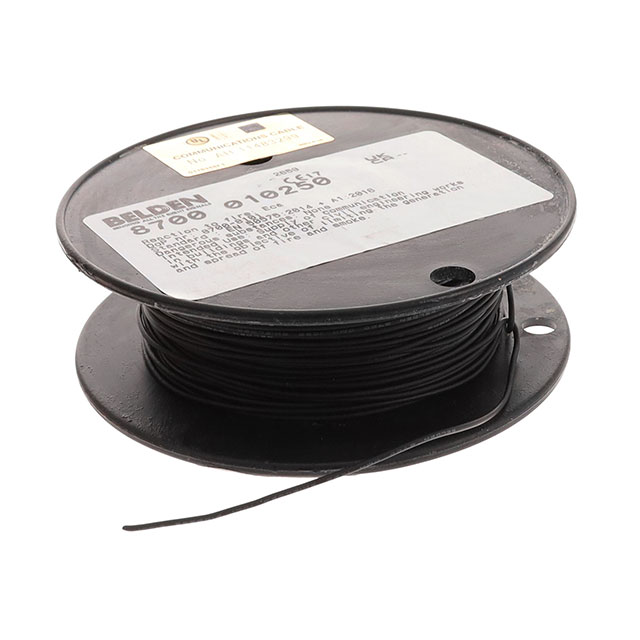

8700 010250

Active

Belden Inc.

32 OHM MINIATURE COAX

Search across all available documentation for this part.

Active

Belden Inc.

32 OHM MINIATURE COAX

Technical Specifications

Parameters and characteristics for this part

Specification	8700 010250

Cable Type	Coaxial
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Impedance	32 Ohms
Jacket (Insulation) Diameter [diameter]	0.054 in
Jacket (Insulation) Diameter [diameter]	1.37 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Black
Length	76.2 m
Length	3000 "
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-30 ░C
Shield Coverage	92 %
Shield Material	Copper, Bare
Shield Type	Braid
Wire Gauge	28 AWG

Part	Wire Gauge	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Conductor Material	Shield Type	Impedance	Jacket (Insulation) Material	Shield Material	Conductor Strand	Length	Length	Shield Coverage
Belden Inc. 8700 010250	28 AWG	Coaxial	0.054 in	1.37 mm	-30 ░C	105 ░C	Black	Copper Tinned	Braid	32 Ohms	Poly-Vinyl Chloride (PVC)	Copper Bare	Solid	76.2 m	3000 "	92 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Coaxial Cable 28 AWG 250.0' (76.20m) 32 Ohms
