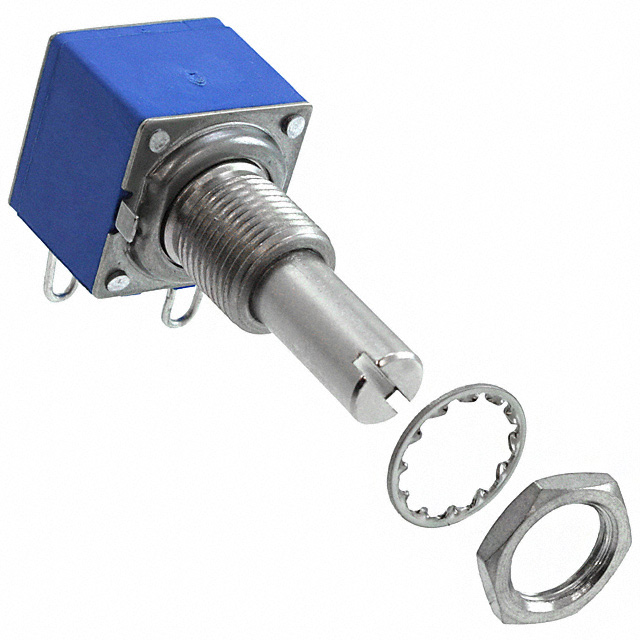

82A1A-B28-A13L

Active

Bourns Inc.

POT 5K OHM 2W CERMET LINEAR

Search across all available documentation for this part.

Active

Bourns Inc.

POT 5K OHM 2W CERMET LINEAR

Technical Specifications

Parameters and characteristics for this part

Part	Bushing Thread	Actuator Type	Tolerance	Number of Turns	Temperature Coefficient	Size - Body [x]	Size - Body [y]	Size - Body [x]	Size - Body [y]	Power (Watts)	Power (Watts)	Number of Gangs	Taper	Resistive Material	Actuator Diameter	Actuator Diameter [diameter]	Termination Style	Rotation	Resistance (Ohms)	Adjustment Type	Actuator Length [z]	Actuator Length [z]	Resistance (Ohms)
Bourns Inc. 82A1A-B24-D18L	3/8-32	Slotted	20 %	1	1000 ppm/°C	0.625 in	15.88 mm	15.88 mm	0.625 in	0.5 W	0.5 W	1	Logarithmic	Conductive Plastic	6.35 mm	0.25 in	Solder Hook	300 ░	50 kOhms	User Defined	19.05 mm	0.75 in
Bourns Inc. 82A1A-B24-A10L	3/8-32	Slotted	10 %	1	150 ppm/°C	0.625 in	15.88 mm	15.88 mm	0.625 in	2 W		1	Linear	Cermet	6.35 mm	0.25 in	Solder Hook	300 ░	1 kOhms	User Defined	19.05 mm	0.75 in
Bourns Inc. 82A1A-B28-A10L	3/8-32	Slotted	10 %	1	150 ppm/°C	0.625 in	15.88 mm	15.88 mm	0.625 in	2 W		1	Linear	Cermet	6.35 mm	0.25 in	Solder Hook	300 ░	1 kOhms	User Defined	22.23 mm	0.875 in
Bourns Inc. 82A1A-B28-D15L	3/8-32	Slotted	20 %	1	1000 ppm/°C	0.625 in	15.88 mm	15.88 mm	0.625 in	0.5 W	0.5 W	1	Logarithmic	Conductive Plastic	6.35 mm	0.25 in	Solder Hook	300 ░		User Defined	22.23 mm	0.875 in	10k
Bourns Inc. 82A1A-B28-A13L	3/8-32	Slotted	10 %	1	150 ppm/°C	0.625 in	15.88 mm	15.88 mm	0.625 in	2 W		1	Linear	Cermet	6.35 mm	0.25 in	Solder Hook	300 ░	5 kOhms	User Defined	22.23 mm	0.875 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Cermet 2W Solder Hook
