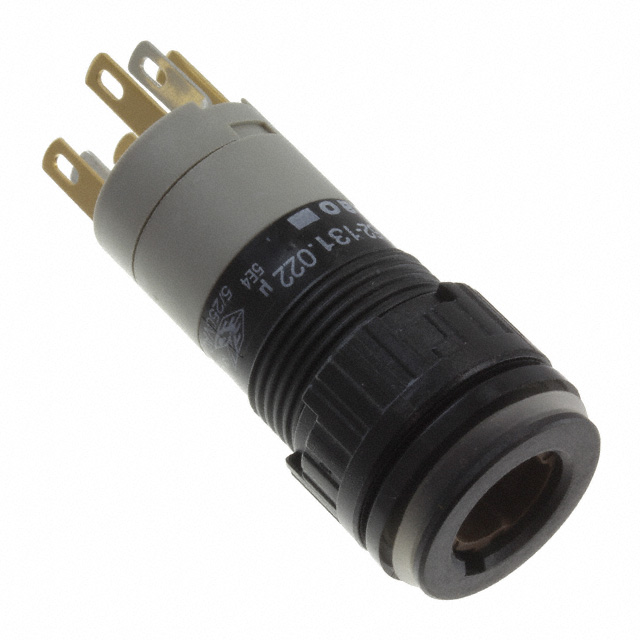

52-131.022

Active

EAO

SWITCH SELECT 2POS DPST 5A 250V

Search across all available documentation for this part.

Active

EAO

SWITCH SELECT 2POS DPST 5A 250V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	52-131.022	52-131 Series

Approval Agency	CB, CSA, UL, CE	CB, CSA, UL, CE
Circuit	DPST-NO/NC	DPST-NO/NC
Current Rating (Amps)	5 A	5 A
Illumination	Illuminated	Illuminated
Ingress Protection	IP65 - Dust Tight, Water Resistant	IP65 - Dust Tight, Water Resistant
Mechanical Life	2000000 Cycles	2000000 Cycles
Number of Positions	2	2
Operating Temperature [Max]	55 °C	55 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	16.2 mm	16.2 mm
Switch Function	Off-Mom, On-Mom	Off-Mom, On-Mom
Termination Style	0.11 in	0.11 in
Termination Style	Quick Connect, Solder	Quick Connect, Solder, Solder Lug
Termination Style	2.8 mm	2.8 mm
Type	Standard	Standard
Voltage Rating - AC	250 V	250 V

SWITCH SELECT 2POS DPST 5A 250V

Part	Type	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Number of Positions	Switch Function	Ingress Protection	Voltage Rating - AC	Circuit	Illumination	Approval Agency	Mechanical Life	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]
EAO 52-131.022	Standard	5 A	0.11 in	Quick Connect, Solder	2.8 mm	2	Off-Mom, On-Mom	IP65 - Dust Tight, Water Resistant	250 V	DPST-NO/NC	Illuminated	CB, CE, CSA, UL	2000000 Cycles	55 °C	-25 °C	16.2 mm
EAO 52-131.025	Standard	5 A		Solder Lug		2	Off-Mom, On-Mom	IP65 - Dust Tight, Water Resistant	250 V	DPST-NO/NC	Illuminated	CB, CE, CSA, UL	2000000 Cycles	55 °C	-25 °C	16.2 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Selector Switch 2 Position DPST-NO/NC 5A (AC) 250 V Panel Mount
