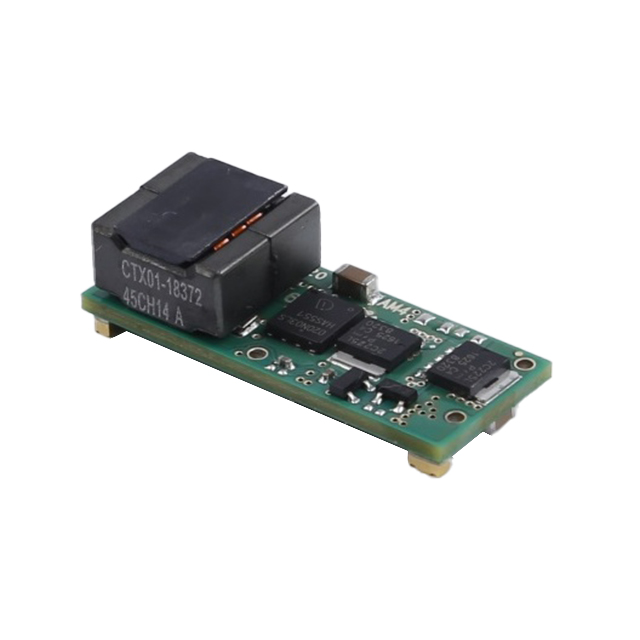

NES1000N30S05

Active

NetPower

DC DC CONVERTER 0.75-5.5V

Search across all available documentation for this part.

Active

NetPower

DC DC CONVERTER 0.75-5.5V

Technical Specifications

Parameters and characteristics for this part

Specification	NES1000N30S05

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	30 A
Efficiency	96 %
Features	Remote On/Off, Adjustable Output, Remote Sense
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	1.3 "
Size / Dimension [x]	33 mm
Size / Dimension [y]	13.5 mm
Size / Dimension [y]	0.53 in
Size / Dimension [z]	0.32 "
Size / Dimension [z]	8.1 mm
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	8.5 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.75 V

DC DC CONVERTER 0.75-5.5V

Part	Type	Voltage - Input (Max) [Max]	Control Features	Voltage - Input (Min) [Min]	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max) [Max]	Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Efficiency
NetPower NES1000N30S05	Non-Isolated PoL Module	18 V	Active Low, Enable	8.5 V	5.5 V	0.75 V	30 A	Adjustable Output, Remote On/Off, Remote Sense	85 °C	-40 °C	Surface Mount	1	ITE (Commercial)	13.5 mm	1.3 "	0.53 in	0.32 "	8.1 mm	33 mm	96 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 20.50

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 30A 8.5V - 18V Input
