28336A 01010000

Active

Belden Inc.

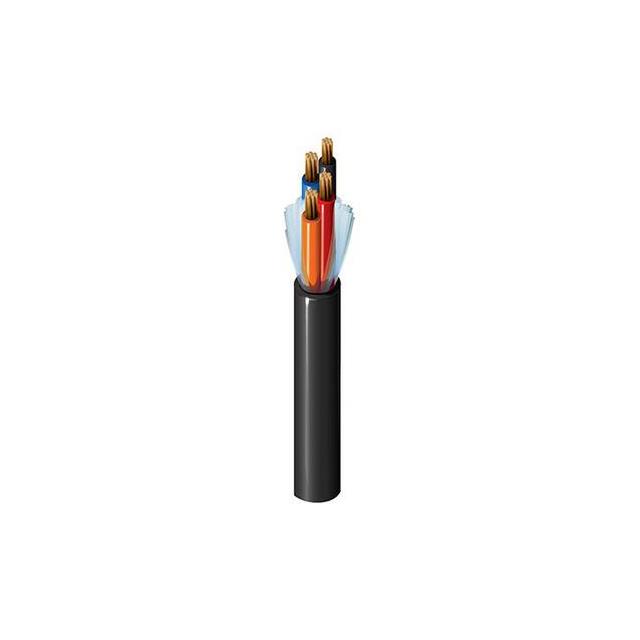

CABLE 9COND 18AWG BLACK 10000'

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 9COND 18AWG BLACK 10000'

Technical Specifications

Parameters and characteristics for this part

Specification	28336A 01010000

Cable Type	Multi-Conductor
Conductor Insulation	Polyamide (PA), Nylon, Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Bare
Conductor Strand [custom]	26 AWG
Conductor Strand [custom]	7
Features	UV Resistant, Direct Burial
Jacket (Insulation) Diameter [diameter]	10.41 mm
Jacket (Insulation) Diameter [diameter]	0.41 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.143 mm
Jacket (Insulation) Thickness	0.045 in
Jacket Color	Black
Length	3048 m
Length [x]	10000 ft
Number of Conductors	9
Wire Gauge	18 AWG

Part	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Cable Type	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Jacket Color	Features	Conductor Material	Jacket (Insulation) Material	Number of Conductors	Length	Length [x]	Wire Gauge	Conductor Strand [custom]	Conductor Strand [custom]
Belden Inc. 28336A 01010000	1.143 mm	0.045 in	Multi-Conductor	10.41 mm	0.41 in	Nylon Poly-Vinyl Chloride (PVC) Polyamide (PA)	Black	Direct Burial UV Resistant	Copper Bare	Poly-Vinyl Chloride (PVC)	9	3048 m	10000 ft	18 AWG	26 AWG	7

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

9 Conductor Multi-Conductor Cable Black 18 AWG 10000' (3048.0m)
