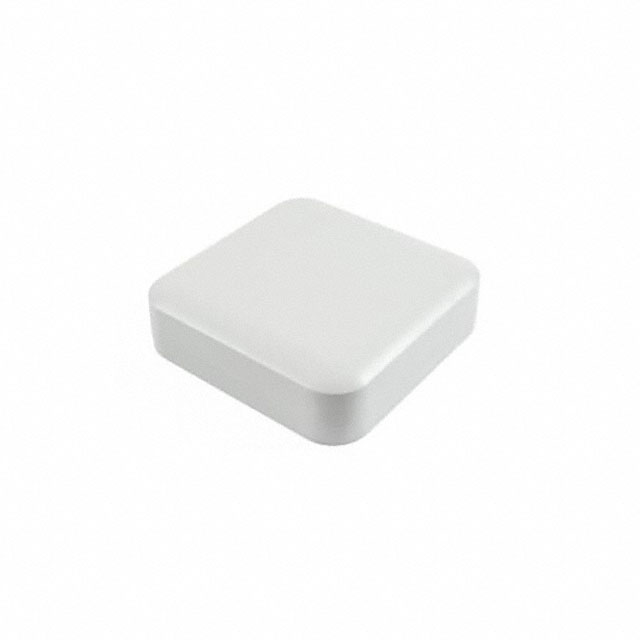

1557F2GY

Active

Hammond Manufacturing

BOX PC GRAY 6.3"L X 6.3"W

Deep-Dive with AI

Search across all available documentation for this part.

1557F2GY

Active

Hammond Manufacturing

BOX PC GRAY 6.3"L X 6.3"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1557F2GY

Area (L x W)	256 cm˛
Area (L x W)	39.7 in˛
Color	Gray
Container Type	Box
Design	Cover Included, Hand Held
Height [z]	1.77 in
Height [z]	44.96 mm
Material	Polycarbonate
Material Flammability Rating	UL94 5VA
Ratings	IP68, NEMA 4, UL-508, NEMA 4X, NEMA 6, NEMA 6P, NEMA 13, NEMA 12
Size / Dimension [x]	160.02 mm
Size / Dimension [x]	6.3 "
Size / Dimension [y]	6.3 "
Size / Dimension [y]	160.02 mm
Thickness	0.12 in
Thickness	3.05 mm

1557 Series

Part	Height [z]	Height [z]	Design	Area (L x W)	Area (L x W)	Container Type	Color	Ratings	Material	Thickness	Thickness	Material Flammability Rating	Area (L x W) [custom]	Area (L x W) [custom]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Area (L x W)
Hammond Manufacturing 1557D2GY	1.77 in	44.96 mm	Cover Included Hand Held	22.3 in˛	144 cm˛	Box	Gray	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X NEMA 6 NEMA 6P UL-508	Polycarbonate	0.12 in	3.05 mm	UL94 5VA
Hammond Manufacturing 1557H2BK	1.77 in	44.96 mm	Cover Included Hand Held			Box	Black	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X NEMA 6 NEMA 6P UL-508	Polycarbonate	0.12 in	3.05 mm	UL94 5VA	399 cm˛	61.8 in˛	199.9 mm	7.87 in	199.9 mm	7.87 in
Hammond Manufacturing 1557B2BK	1.77 in	44.96 mm	Cover Included Hand Held	9.92 in˛	64 cm˛	Box	Black	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X NEMA 6 NEMA 6P UL-508	Polycarbonate	0.12 in	3.05 mm	UL94 5VA			80.01 mm	3.15 in	80.01 mm	3.15 in
Hammond Manufacturing 1557F2BK	1.77 in	44.96 mm	Cover Included Hand Held	256 cm˛		Box	Black	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X NEMA 6 NEMA 6P UL-508	Polycarbonate	0.12 in	3.05 mm	UL94 5VA			160.02 mm	6.3 "	160.02 mm	6.3 "	39.7 in˛
Hammond Manufacturing 1557HA2GY	2.76 in	70.1 mm	Cover Included Hand Held			Box	Gray	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X NEMA 6 NEMA 6P UL-508	Polycarbonate	0.12 in	3.05 mm	UL94 5VA	399 cm˛	61.8 in˛	199.9 mm	7.87 in	199.9 mm	7.87 in
Hammond Manufacturing 1557BA2GY	2.36 in	59.94 mm	Cover Included Hand Held	9.92 in˛	64 cm˛	Box	Gray	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X NEMA 6 NEMA 6P UL-508	Polycarbonate	0.12 in	3.05 mm	UL94 5VA			80.01 mm	3.15 in	80.01 mm	3.15 in
Hammond Manufacturing 1557F2GY	1.77 in	44.96 mm	Cover Included Hand Held	256 cm˛		Box	Gray	IP68 NEMA 12 NEMA 13 NEMA 4 NEMA 4X NEMA 6 NEMA 6P UL-508	Polycarbonate	0.12 in	3.05 mm	UL94 5VA			160.02 mm	6.3 "	160.02 mm	6.3 "	39.7 in˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 27.92
		5	$ 26.28
		10	$ 24.63
		25	$ 22.99
		50	$ 22.58
		100	$ 22.17
		250	$ 21.84

Description

General part information

1557 Series

Box Polycarbonate Gray Hand Held, Cover Included 6.300" L x 6.300" W (160.02mm x 160.02mm) X 1.770" (44.96mm)

Documents

Technical documentation and resources

No documents available
