Q-0J00V0005024i

Active

Amphenol Custom Cable

COAX CBL BNC TO HD-BNC 24"

Search across all available documentation for this part.

Active

Amphenol Custom Cable

COAX CBL BNC TO HD-BNC 24"

Technical Specifications

Parameters and characteristics for this part

Part	Overall Impedance	2nd Connector Mounting Type	Style	Color	2nd Contact Gender	Frequency - Max [Max]	Cable Type	1st Contact Gender	Length	Length	Length	2nd Connector	1st Connector Mounting Type	Features	1st Connector	Length [x]	Length [x]
Amphenol Custom Cable Q-0J00V0003003M	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	Black	Male	4 GHz	RG-174	Male	3 m	118.1 in	9.8 '	HD-BNC Plug	Free Hanging (In-Line)	Shielded	BNC Plug
Amphenol Custom Cable Q-0J00V0003012i	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	Black	Male	4 GHz	RG-174	Male	304.8 mm	12 "		HD-BNC Plug	Free Hanging (In-Line)	Shielded	BNC Plug
Amphenol Custom Cable Q-0J00V0003.25M	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	Black	Male	4 GHz	RG-174	Male				HD-BNC Plug	Free Hanging (In-Line)	Shielded	BNC Plug	9.843 "	250 mm
Amphenol Custom Cable Q-0J00V00030.5M	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	Black	Male	4 GHz	RG-174	Male	50 cm	19.69 "		HD-BNC Plug	Free Hanging (In-Line)	Shielded	BNC Plug
Amphenol Custom Cable Q-0J00V0005024i	50 Ohms	Free Hanging (In-Line)	BNC to HD-BNC	Copper	Male	4 GHz	RG-316	Male	609.6 mm	24 "		HD-BNC Plug	Free Hanging (In-Line)	Shielded	BNC Plug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

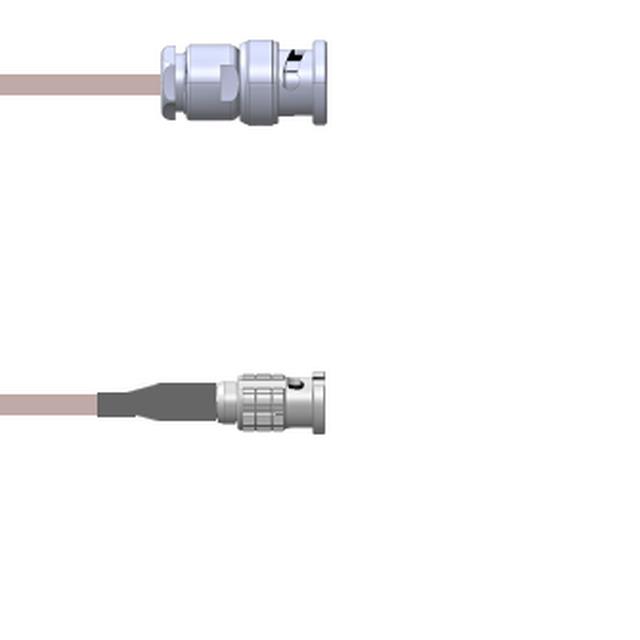

Cable Assembly Coaxial BNC to HD-BNC RG-316 24.00" (609.60mm)

Technical documentation and resources

No documents available
