C14610B0720009

Active

Amphenol Tuchel Industrial

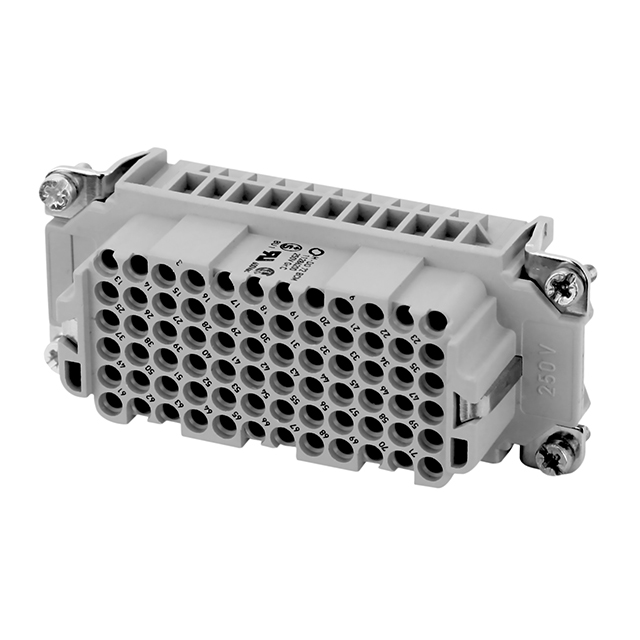

INSERT FEMALE 72POS+1GND CRIMP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

INSERT FEMALE 72POS+1GND CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	C14610B0720009

Color	Gray
Connector Type	Insert without Contacts
Contact Type	DD, M, C146 D, heavy\|mate®
Current Rating (Amps)	8.5 A
Gender	Female
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Size	E16
Termination Style	Crimp
Voltage Rating	250 VDC

Part	Gender	Housing Material	Current Rating (Amps)	Color	Material Flammability Rating	Connector Type	Termination Style	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Size	Contact Type
Amphenol Tuchel Industrial C14610B0720009	Female	Polybutylene Terephthalate (PBT)	8.5 A	Gray	UL94 V-0	Insert without Contacts	Crimp	250 VDC	100 °C	-40 °C	E16	C146 D DD heavy\|mate® M

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 14.39

General part information

Female Insert without Contacts Gray 72+Ground Position Crimp
