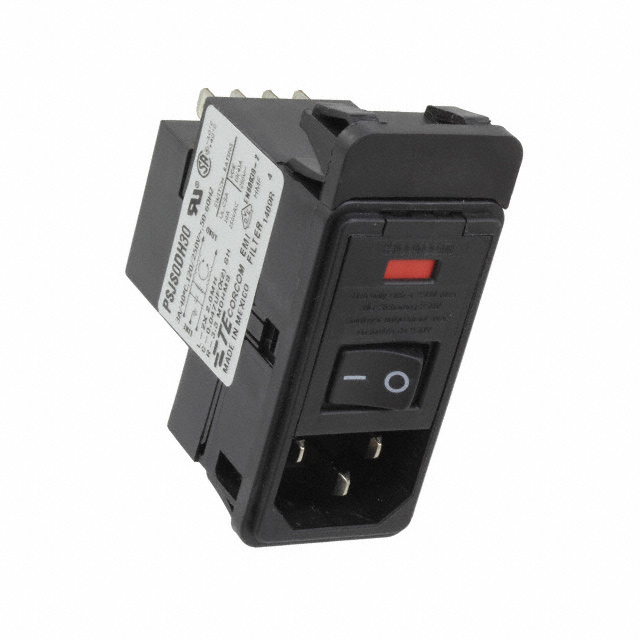

PSJS0DH30

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources

Specification	PSJS0DH30	PSJS Series

Accomodates a Fuse	True	True
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	3 A	3 - 10 A
Current Rating - Filter	3 A	3 A
Features	-	Voltage Selector, Conversion Clip
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Unfiltered - Commercial, Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Fuse Holder, Twin Fused	Fuse Holder, Fuse Holder, Twin Fused
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	26.92 mm	26.92 mm
Panel Cutout Dimensions [y]	66.04 mm	54.1 - 66.04 mm
Panel Thickness	-	0.225 in
Panel Thickness	-	5.72 mm
Panel Thickness [Max]	2.9 mm	2.9 mm
Panel Thickness [Max]	0.114 in	0.114 in
Panel Thickness [Min]	0.79 mm	0.79 mm
Panel Thickness [Min]	0.031 "	0.031 "
Switch Features	Switch On-Off	Switch On-Off
Termination	0.187 "	0.187 "
Termination	4.7 mm	4.7 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet	120 VAC	120 VAC

Part	Fuse Holder, Drawer	Connector Type	Switch Features	Panel Thickness	Panel Thickness	Connector Style	Mounting Type	Features	Approval Agency	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Accomodates a Fuse	Termination	Termination	Termination	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Filter Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Current Rating - Filter
TE Connectivity Corcom Filters PSJSXS000	Fuse Holder	Receptacle, Male Blades - Module	Switch On-Off	0.225 in	5.72 mm	IEC 320-C14	Panel Mount, Snap-In	Conversion Clip, Voltage Selector	CSA, UL, VDE	10 A	120 VAC		0.187 "	4.7 mm	Quick Connect	54.1 mm	26.92 mm	Unfiltered - Commercial
TE Connectivity Corcom Filters PSJS0DH30	Fuse Holder, Twin Fused	Receptacle, Male Blades - Module	Switch On-Off			IEC 320-C14	Panel Mount, Snap-In		CSA, UL, VDE	3 A	120 VAC		0.187 "	4.7 mm	Quick Connect	66.04 mm	26.92 mm	Filtered (EMI, RFI) - Commercial, Medical	2.9 mm	0.114 in	0.79 mm	0.031 "	3 A
