66WR1KLF

Active

TT Electronics/BI

TRIMMER 1K OHM 0.5W PC PIN TOP

Search across all available documentation for this part.

Active

TT Electronics/BI

TRIMMER 1K OHM 0.5W PC PIN TOP

Technical Specifications

Parameters and characteristics for this part

Part	Number of Turns	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Temperature Coefficient	Resistive Material	Adjustment Type	Mounting Type	Termination Style	Power (Watts)	Power (Watts)	Resistance
TT Electronics/BI 66WR500KLF	20	0.2 "	5.08 mm	0.375 in	9.53 mm	10 %	100 ppm/°C	Cermet	Top Adjustment	Through Hole	PC Pins	0.5 W	0.5 W
TT Electronics/BI 66WR5KLF	20	0.2 "	5.08 mm	0.375 in	9.53 mm	10 %	100 ppm/°C	Cermet	Top Adjustment	Through Hole	PC Pins	0.5 W	0.5 W	5 kOhms
TT Electronics/BI 66WR200LF	20	0.2 "	5.08 mm	0.375 in	9.53 mm	10 %	100 ppm/°C	Cermet	Top Adjustment	Through Hole	PC Pins	0.5 W	0.5 W	200 Ohms
TT Electronics/BI 66WR100LF	20	0.2 "	5.08 mm	0.375 in	9.53 mm	10 %	100 ppm/°C	Cermet	Top Adjustment	Through Hole	PC Pins	0.5 W	0.5 W	100 Ohms
TT Electronics/BI 66WR500LF	20	0.2 "	5.08 mm	0.375 in	9.53 mm	10 %	100 ppm/°C	Cermet	Top Adjustment	Through Hole	PC Pins	0.5 W	0.5 W	500 Ohms
TT Electronics/BI 66WR1KLF	20	0.2 "	5.08 mm	0.375 in	9.53 mm	10 %	100 ppm/°C	Cermet	Top Adjustment	Through Hole	PC Pins	0.5 W	0.5 W	1000 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

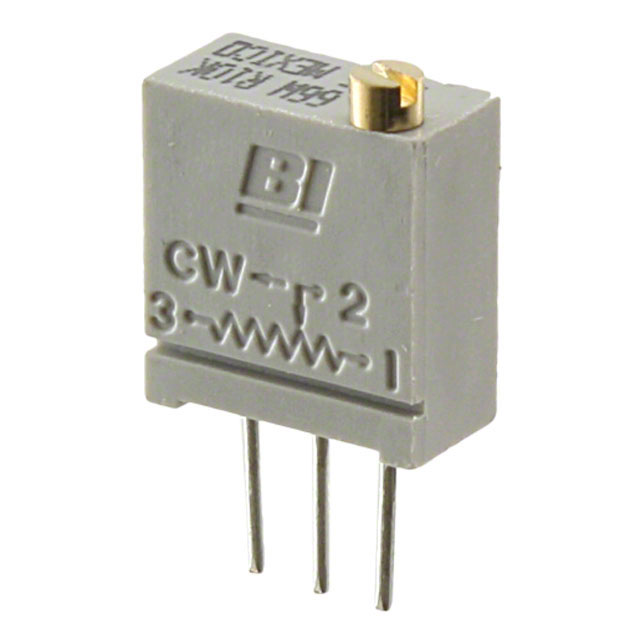

1 kOhms 0.5W, 1/2W PC Pins Through Hole Trimmer Potentiometer Cermet 20.0 Turn Top Adjustment

Technical documentation and resources
