02K109-S00S3

Active

Rosenberger

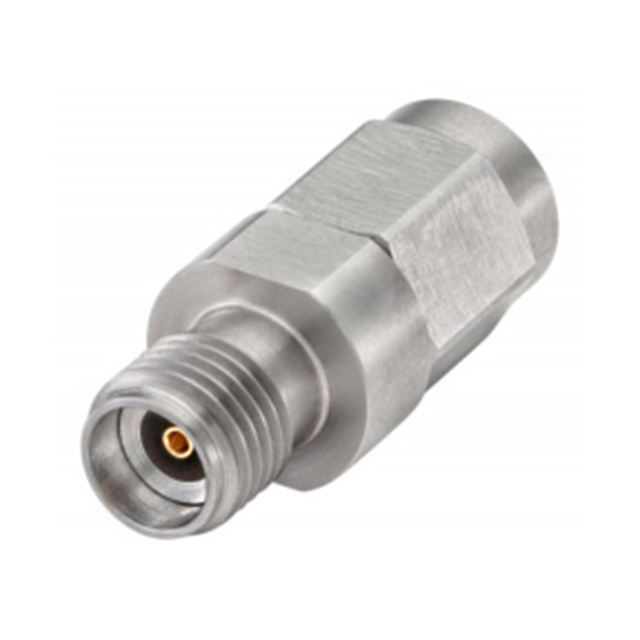

PRECISION 2.92 ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

PRECISION 2.92 ADAPTER

Technical Specifications

Parameters and characteristics commom to parts in this series

PRECISION 2.92 ADAPTER

Part	Impedance	Center Contact Plating	Body Material	Frequency - Max [Max]	Convert From (Adapter End)	Convert From (Adapter End)	Style	Center Contact Material	Insertion Loss	Conversion Type	Mounting Type	Dielectric Material	Center Gender	Convert To (Adapter End)	Adapter Type	Operating Temperature [Max]	Operating Temperature [Min]	Mating Cycles	Adapter Series	Convert To (Adapter End)
Rosenberger 02K109-K00S3	50 Ohms	Gold	Stainless Steel	40 GHz	2.92 mm	Jack, Female Socket, OS-2.9	Straight	Beryllium Copper	0.32 dB	Between Series	Free Hanging (In-Line)	Polystyrene (PS)	Female to Female	2.4 mm	Jack to Jack	85 °C	-40 °C	500	RPC-2.92 to RPC-2.40
Rosenberger 02K109-S00S3	50 Ohms	Gold	Stainless Steel	40 GHz	2.92 mm	Jack, Female Socket, OS-2.9	Straight	Beryllium Copper	0.32 dB	Between Series	Free Hanging (In-Line)	Polystyrene (PS)			Plug to Jack	85 °C	-40 °C	500	RPC-2.92 to RPC-2.40	2.4mm (APC-2.4, OS-50) Plug, Male Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	5	$ 347.71

General part information

Adapter Coaxial Connector 2.92mm (OS-2.9) Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
