DMC506010R
UnknownPanasonic Industrial Automation Sales
TRANS 2NPN 50V 100MA SMINI6-F3
Deep-Dive with AI
Search across all available documentation for this part.
DMC506010R
UnknownPanasonic Industrial Automation Sales
TRANS 2NPN 50V 100MA SMINI6-F3
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DMC506010R |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 100 mA |
| Current - Collector Cutoff (Max) [Max] | 100 µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 210 |
| Frequency - Transition | 150 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |

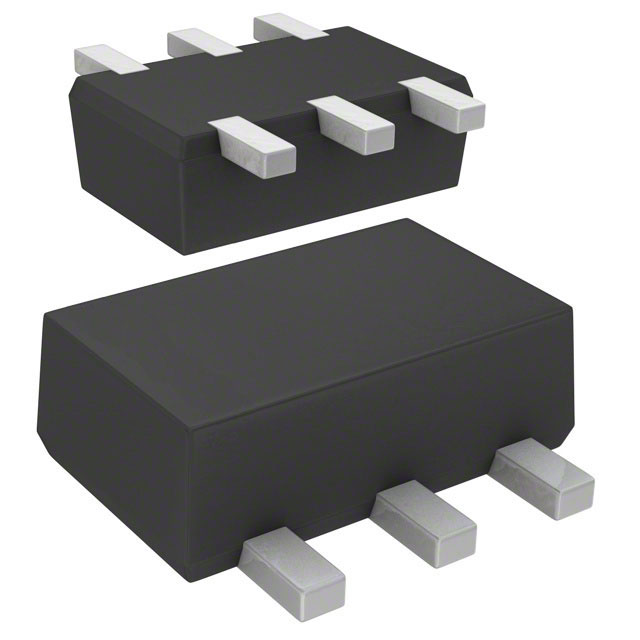

| Package / Case | 6-SMD, Flat Leads |
| Supplier Device Package | SMini6-F3-B |
| Transistor Type | 2 NPN (Dual) |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.10 | |
| 6000 | $ 0.09 | |||
| 9000 | $ 0.09 | |||
| 15000 | $ 0.08 | |||
| 21000 | $ 0.08 | |||
| 30000 | $ 0.08 | |||
| 75000 | $ 0.08 | |||
Description
General part information
DMC50601 Series
Bipolar (BJT) Transistor Array 2 NPN (Dual) 50V 100mA 150MHz 150mW Surface Mount SMini6-F3-B
Documents
Technical documentation and resources
No documents available
