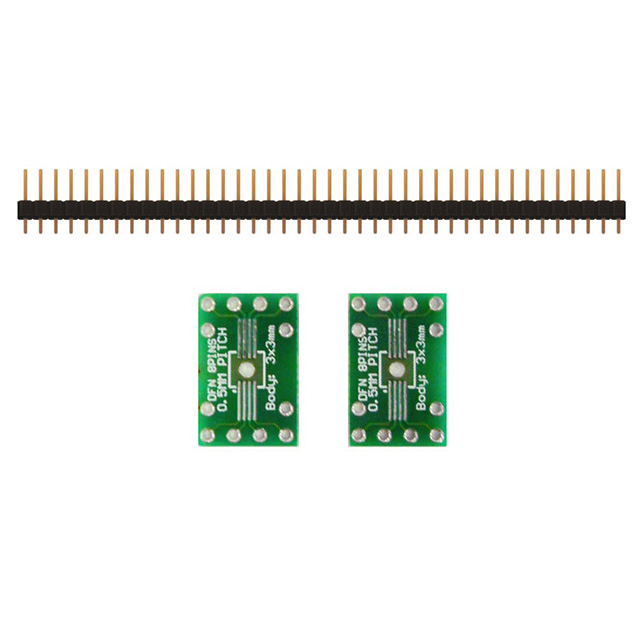

204-0021-01

Active

Schmartboard, Inc.

SCHMARTBOARDEZ 0.5MM PITCH 8 PIN

Search across all available documentation for this part.

Active

Schmartboard, Inc.

SCHMARTBOARDEZ 0.5MM PITCH 8 PIN

Technical Specifications

Parameters and characteristics commom to parts in this series

SCHMARTBOARDEZ 0.5MM PITCH 8 PIN

Part	Proto Board Type	Pitch [x]	Pitch [x]	Package Accepted	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Number of Positions
Schmartboard, Inc. 204-0021-01	SMD to DIP	0.5 mm	0.02 in	DFN	20.07 mm	0.595 in	0.79 in	15.11 mm	8
Schmartboard, Inc. 204-0021-31	SMD to DIP	0.5 mm	0.02 in	DFN	20.07 mm	0.595 in	0.79 in	15.11 mm	8

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.00

General part information

SCHMARTBOARDEZ 0.5MM PITCH 8 PIN
