VT6X2T2R

Active

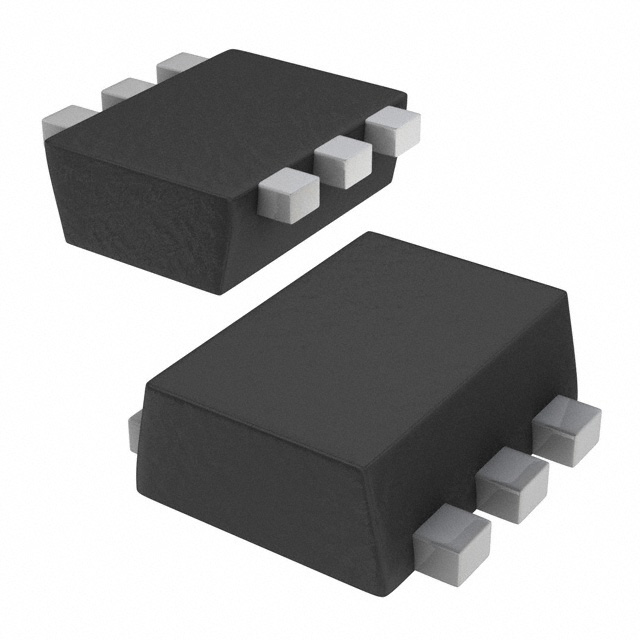

Rohm Semiconductor

TRANS 2NPN 50V 0.1A 6VMT

Search across all available documentation for this part.

Active

Rohm Semiconductor

TRANS 2NPN 50V 0.1A 6VMT

Technical Specifications

Parameters and characteristics for this part

Specification	VT6X2T2R

Current - Collector (Ic) (Max) [Max]	100 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	120
Frequency - Transition	350 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	6-SMD
Supplier Device Package	VMT6
Transistor Type	2 NPN (Dual)
Vce Saturation (Max) @ Ib, Ic	300 mV
Voltage - Collector Emitter Breakdown (Max) [Max]	50 V

TRANS 2NPN 50V 0.1A 6VMT

Part	Transistor Type	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Current - Collector Cutoff (Max) [Max]	Vce Saturation (Max) @ Ib, Ic	Package / Case	Frequency - Transition	Operating Temperature	Current - Collector (Ic) (Max) [Max]	Voltage - Collector Emitter Breakdown (Max) [Max]	Supplier Device Package	Mounting Type
Rohm Semiconductor VT6X2T2R	2 NPN (Dual)	120	100 nA	300 mV	6-SMD	350 MHz	150 °C	100 mA	50 V	VMT6	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor Array 2 NPN (Dual) 50V 100mA 350MHz 150mW Surface Mount VMT6
