RT-375-1/2-X-65MM

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK 1/2" X 0.213' CLEAR

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

HEATSHRINK 1/2" X 0.213' CLEAR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	RT-375-1/2-X-65MM	RT-375 Series

Color	Clear	Clear
Features	Chemical Resistant, Flame Retardant	Chemical Resistant, Flame Retardant
Inner Diameter - Recovered [diameter]	0.25 in	0.25 in
Inner Diameter - Recovered [diameter]	6.35 mm	6.35 mm
Inner Diameter - Supplied [diameter]	12.7 mm	12.7 - 15.88 mm
Inner Diameter - Supplied [diameter]	0.5 in	0.5 - 0.625 in
Length [x]	65 mm	65 mm
Length [x]	2.56 "	2.56 "
Length [x]	0.213 ft	0.213 ft
Material	Fluoropolymer, Irradiated	Fluoropolymer, Irradiated
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-55 °C	-55 °C
Recovered Wall Thickness	0.3 mm	0.3 mm
Recovered Wall Thickness	0.012 in	0.012 in
Shrink Temperature	125 °C	125 °C
Shrinkage Ratio	2 to 1	2 to 1
Type	Tubing, Flexible	Tubing, Flexible

HEATSHRINK 1/2" X 0.213' CLEAR

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Material	Type	Color	Length [x]	Length [x]	Length [x]	Shrinkage Ratio	Features
TE Connectivity Aerospace, Defense and Marine RT-375-1/2-X-65MM	12.7 mm	0.5 in	0.3 mm	0.012 in	125 °C	0.25 in	6.35 mm	-55 °C	150 °C	Fluoropolymer, Irradiated	Tubing, Flexible	Clear	65 mm	2.56 "	0.213 ft	2 to 1	Chemical Resistant, Flame Retardant
TE Connectivity Aerospace, Defense and Marine RT-375-5/8-X-SP	15.88 mm	0.625 in			125 °C			-55 °C	150 °C	Fluoropolymer, Irradiated	Tubing, Flexible	Clear				2 to 1	Chemical Resistant, Flame Retardant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	26000	$ 0.29

General part information

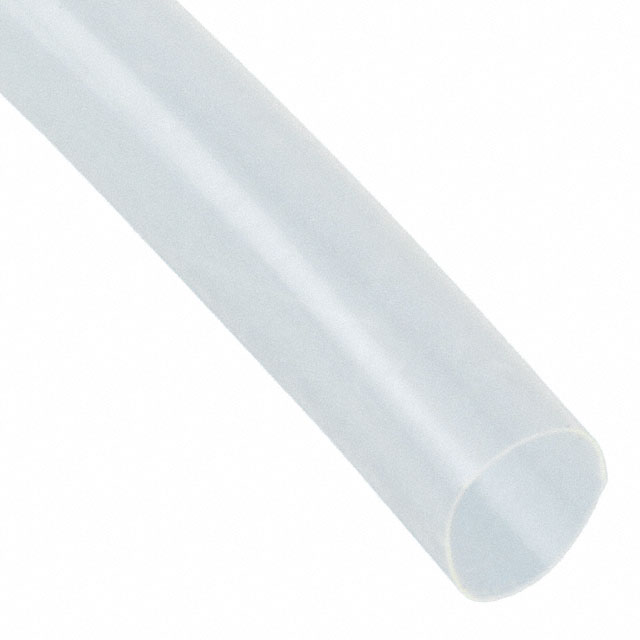

Heat Shrink Tubing, Flexible 0.500" (12.70mm) 2 to 1 Clear 0.213' (65.00mm, 2.56")
