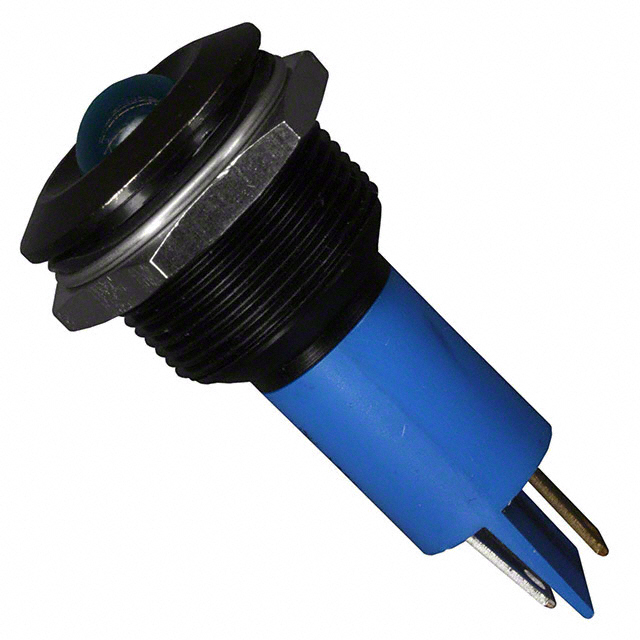

Q19P1BXXB110E
ActiveAPEM
INDICATOR 110V 19MM PROM BLUE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Q19P1BXXB110E
ActiveAPEM
INDICATOR 110V 19MM PROM BLUE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | Q19P1BXXB110E |
|---|---|
| Current | 6 mA |
| Ingress Protection | IP67 |
| Lamp Color | Blue |
| Lens Color | Blue |
| Lens Size [diameter] | 10 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 540 mcd |
| Panel Cutout Dimensions [x] | 0.75 " |
| Panel Cutout Dimensions [x] | 19.05 mm |
| Panel Cutout Shape | Round |
| Ratings | AC |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | LED |
| Viewing Angle | 60 ° |
| Voltage | 110 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 30.55 | |
Description
General part information
Q19P1BXXB Series
LED Panel Indicator Blue Diffused 60° 110V 6mA Quick Connect - 0.110" (2.8mm)
