Q-0D0030005002F
ActiveAmphenol Custom Cable

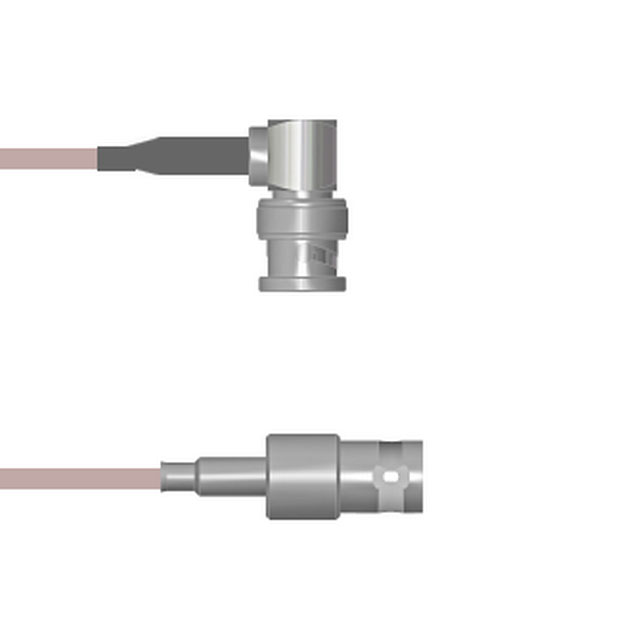

COAX CBL BNC TO BNC 24"
Deep-Dive with AI
Search across all available documentation for this part.
Q-0D0030005002F
ActiveAmphenol Custom Cable
COAX CBL BNC TO BNC 24"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | Q-0D0030005002F |
|---|---|
| 1st Connector | BNC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | BNC Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Connector Impedance | 50 Ohms |
| Features | Shielded |
| Frequency - Max [Max] | 3 GHz |
| Length | 24 " |
| Length | 609.6 mm |
| Overall Impedance | 50 Ohms |
| Style | BNC to BNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 72.00 | |
| 25 | $ 70.59 | |||
| 50 | $ 69.18 | |||
| 100 | $ 67.77 | |||
| 250 | $ 66.36 | |||
Description
General part information
Q-0D0030 Series
Cable Assembly Coaxial BNC to BNC RG-316 24.00" (609.60mm)
Documents
Technical documentation and resources
No documents available
