NHD-C12832A1Z-FSW-FBW-3V3

Active

Newhaven Display Intl

LCD COG GRAPHIC 128X32

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD COG GRAPHIC 128X32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

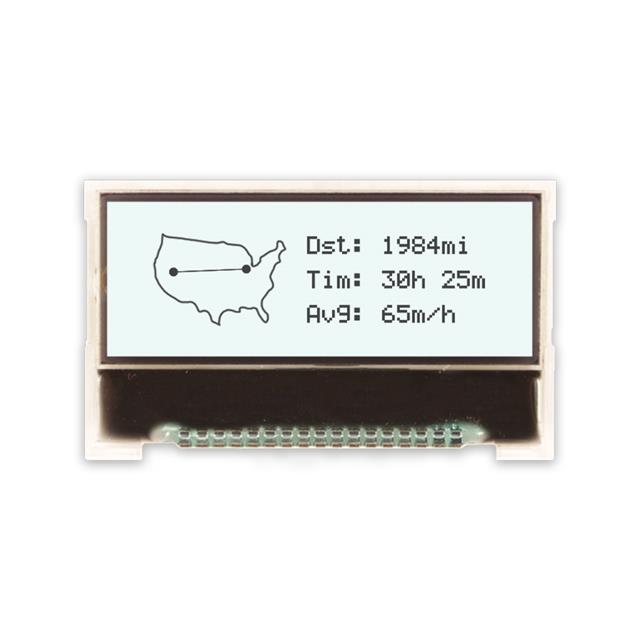

Graphic LCD Display Module Transflective Black (White - Inverted) FSTN - Film Super-Twisted Nematic SPI 128 x 32

Specification	NHD-C12832A1Z-FSW-FBW-3V3	NHD-C12832 Series

Background Color	White	Blue (Black - Inverted), Blue, Green, Red, White
Background Color	Black	White, Black
Backlight	LED - White	LED - Blue, LED - White, LED, Red, Green, Blue, LED - Red
Controller Type	ST7565R	ST7565R
Display Mode	Transflective	Transflective, Transmissive
Display Type	FSTN - Film Super-Twisted Nematic	FSTN - Film Super-Twisted Nematic, STN - Super-Twisted Nematic
Dot Pitch	-	0.31 mm
Dot Pitch [x]	0.25 mm	0.25 mm
Dot Pitch [y]	0.25 mm	0.23 - 0.25 mm
Dot Pixels [x]	128	128
Dot Pixels [y]	32	32
Dot Size [y]	0.23 mm	0.2 - 0.23 mm
Dot Size [z]	0.23 mm	0.23 - 0.28 mm
Graphics Color	Black	Black, White, Blue
Graphics Color	-	Red
Interface	SPI	SPI
Viewing Area	-	31.4 mm
Viewing Area	-	19.4 mm

Part	Dot Size [y]	Dot Size [z]	Dot Pitch [x]	Dot Pitch [y]	Interface	Graphics Color	Background Color	Display Type	Dot Pixels [y]	Dot Pixels [x]	Backlight	Display Mode	Controller Type	Background Color	Graphics Color	Viewing Area [x]	Viewing Area [y]	Dot Pitch [z]
Newhaven Display Intl NHD-C12832A1Z-FSB-FBW-3V3	0.23 mm	0.23 mm	0.25 mm	0.25 mm	SPI	Black	Blue (Black - Inverted)	FSTN - Film Super-Twisted Nematic	32	128	LED - Blue	Transflective	ST7565R
Newhaven Display Intl NHD-C12832A1Z-NSW-BBW-3V3	0.23 mm	0.23 mm	0.25 mm	0.25 mm	SPI	Blue, White	Blue	STN - Super-Twisted Nematic	32	128	LED - White	Transmissive	ST7565R	White
Newhaven Display Intl NHD-C12832A1Z-FS(RGB)-FBW-3V	0.23 mm	0.23 mm	0.25 mm	0.25 mm	SPI	Black	Blue, Green, Red	FSTN - Film Super-Twisted Nematic	32	128	Blue, Green, LED, Red	Transflective	ST7565R
Newhaven Display Intl NHD-C12832A1Z-FSR-FBW-3V3	0.23 mm	0.23 mm	0.25 mm	0.25 mm	SPI	Black	Red	FSTN - Film Super-Twisted Nematic	32	128	LED - Red	Transflective	ST7565R		Red
Newhaven Display Intl NHD-C-12832AZ-RN-GBS	0.2 mm	0.28 mm		0.23 mm				STN - Super-Twisted Nematic	32	128		Transflective				31.4 mm	19.4 mm	0.31 mm
Newhaven Display Intl NHD-C12832A1Z-FSW-FBW-3V3	0.23 mm	0.23 mm	0.25 mm	0.25 mm	SPI	Black	White	FSTN - Film Super-Twisted Nematic	32	128	LED - White	Transflective	ST7565R	Black
