1444-24

Active

Hammond Manufacturing

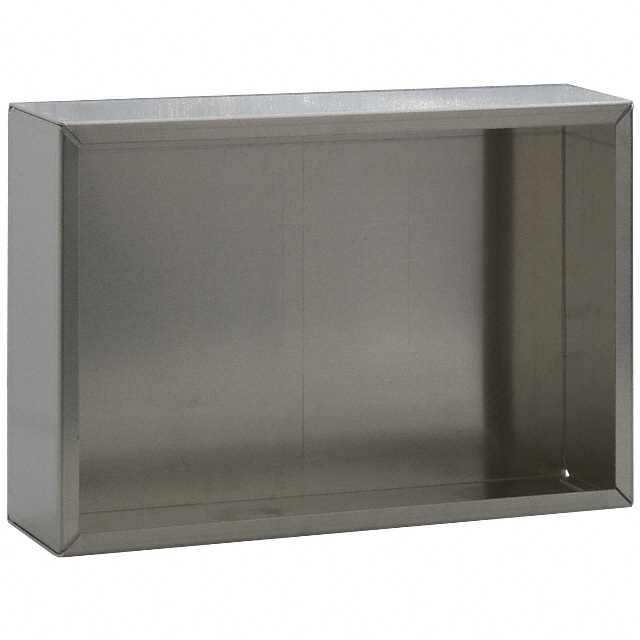

CHASSIS ALUM NATURAL 12"L X 8"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1434, 1444 Series 1444 Series

1444-24

Active

Hammond Manufacturing

CHASSIS ALUM NATURAL 12"L X 8"W

Deep-Dive with AI

Documents1434, 1444 Series 1444 Series

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 36.18
		10	$ 31.92
		100	$ 28.73

Description

General part information

1444 Series

Chassis Metal, Aluminum Natural Open End(s) 12.000" L x 8.000" W (304.80mm x 203.20mm) X 3.000" (76.20mm)

Documents

Technical documentation and resources

1434, 1444 Series

Datasheet

1444 Series

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1444-24	1444 Series

Area (L x W)	96 in˛	15.8 - 255 in˛
Area (L x W)	619 cm˛	102 - 1645 cm˛
Area (L x W)	-	35 - 289 in²
Area (L x W)	-	226 - 1865 cm²
Area (L x W)	-	36 in²
Area (L x W)	-	155 - 903 cm²
Area (L x W)	-	24 - 136 in²
Area (L x W)	-	167 in²
Area (L x W)	-	140 in²
Color	Natural	Natural
Container Type	Chassis	Chassis
Design	Open End(s)	Open End(s)
Features	Hardware not Provided	Hardware not Provided, Walnut Side Panels
Height [z]	76.2 mm	25.4 - 152.4 mm
Height [z]	3 in	1 - 101.6 in
Material	Metal, Aluminum	Metal, Aluminum, Wood
Size / Dimension	-	101.6 - 152.4 mm
Size / Dimension	-	6 - 7.928 "
Size / Dimension	-	11.928 - 17 "
Size / Dimension	-	254 - 304.8 mm
Size / Dimension [x]	12 in	4 - 17 in
Size / Dimension [x]	304.8 mm	101.6 - 431.8 mm
Size / Dimension [y]	8 in	3.5 - 228.6 in
Size / Dimension [y]	203.2 mm	88.89 - 431.8 mm
Thickness	0.04 in	0.04 - 0.051 in
Thickness	1.02 mm	1.02 - 1.3 mm
Weight	1.1 lbs	0.053 - 2.1 lb
Weight	499 g	24.04 - 952.5 g

1444 Series

CHASSIS ALUM NATURAL 12"L X 8"W

Part	Design	Material	Color	Area (L x W)	Area (L x W)	Thickness	Thickness	Height [z]	Height [z]	Weight	Weight	Container Type	Features	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)
Hammond Manufacturing 1444-22	Open End(s)	Aluminum, Metal	Natural	96 in˛	619 cm˛	0.04 in	1.02 mm	50.8 mm	2 in	0.894 lb	405.51 g	Chassis	Hardware not Provided	12 in	8 in	304.8 mm	203.2 mm
Hammond Manufacturing 1444-17135	Open End(s)	Aluminum, Metal	Natural	221 in²	1426 cm²	0.051 "	1.3 mm	127 mm	5 in			Chassis	Hardware not Provided	17 in	13 in	431.8 mm	330.2 mm
Hammond Manufacturing 1444-1593	Open End(s)	Aluminum, Metal	Natural	135 in²	871 cm²	0.051 "	1.3 mm	76.2 mm	3 in			Chassis	Hardware not Provided	15 in	228.6 mm	381 mm	228.6 mm
Hammond Manufacturing 1444-17143	Open End(s)	Aluminum, Metal	Natural			0.051 "	1.3 mm	76.2 mm	3 in			Chassis	Hardware not Provided	17 in	14 in	431.8 mm	355.6 mm	238 in²	1535 cm²
Hammond Manufacturing 1444-17134	Open End(s)	Aluminum, Metal	Natural	221 in²	1426 cm²	0.051 "	1.3 mm	101.6 mm	101.6 mm			Chassis	Hardware not Provided	17 in	13 in	431.8 mm	330.2 mm
Hammond Manufacturing 1444-84515	Open End(s)	Aluminum, Metal	Natural		232 cm²	0.04 in	1.02 mm	38.1 mm	1.5 in			Chassis	Hardware not Provided	8 "	4.5 in	203.2 mm	114.3 mm			36 in²
Hammond Manufacturing 1444-972	Open End(s)	Aluminum, Metal	Natural	62.9 in˛	406 cm˛	0.04 in	1.02 mm	50.8 mm	2 in			Chassis	Hardware not Provided	9 in	7 in	228.6 mm	177.8 mm
Hammond Manufacturing 1444-95525	Open End(s)	Aluminum, Metal	Natural	47.4 in˛	306 cm˛	0.04 in	1.02 mm	63.5 mm	2.5 in			Chassis	Hardware not Provided	9.5 "	5 "	241.3 mm	127 mm
Hammond Manufacturing 1444-12123	Open End(s)	Aluminum, Metal	Natural			0.051 "	1.3 mm	76.2 mm	3 in			Chassis	Hardware not Provided	12 in	12 "	304.8 mm	304.8 mm
Hammond Manufacturing 1444-6	Open End(s)	Aluminum, Metal	Natural	16 in˛	103 cm˛	0.04 in	1.02 mm	50.8 mm	2 in	0.213 lb	96.62 g	Chassis	Hardware not Provided	4 in	4 "	101.6 mm	101.6 mm
