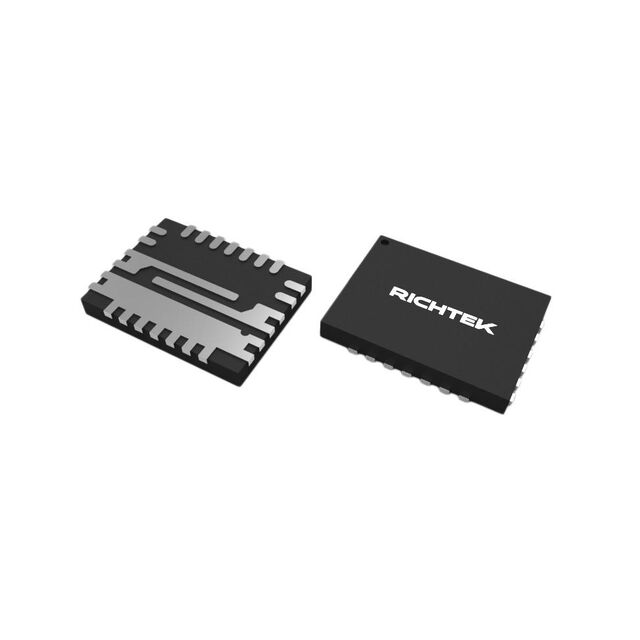

RT6321AN-A
ActiveRichtek USA Inc.
IC REG BUCK ADJ 12A 23UQFN(FC)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT6321AN-A
ActiveRichtek USA Inc.
IC REG BUCK ADJ 12A 23UQFN(FC)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT6321AN-A |
|---|---|
| Current - Output | 12 A |
| Frequency - Switching | 500 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 26-PowerUFQFN |
| Supplier Device Package | 26-UQFN (FC) (4x3) |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 23 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Output (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 0.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.62 | |
| 10 | $ 2.35 | |||
| 25 | $ 2.22 | |||
| 100 | $ 1.89 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.56 | |||
| Digi-Reel® | 1 | $ 2.62 | ||
| 10 | $ 2.35 | |||
| 25 | $ 2.22 | |||
| 100 | $ 1.89 | |||
| 250 | $ 1.78 | |||
| 500 | $ 1.56 | |||
| Tape & Reel (TR) | 1500 | $ 1.29 | ||
| 3000 | $ 1.20 | |||
| 7500 | $ 1.16 | |||
Description
General part information
RT6321 Series
Buck Switching Regulator IC Positive Adjustable 0.6V 1 Output 12A 26-PowerUFQFN
