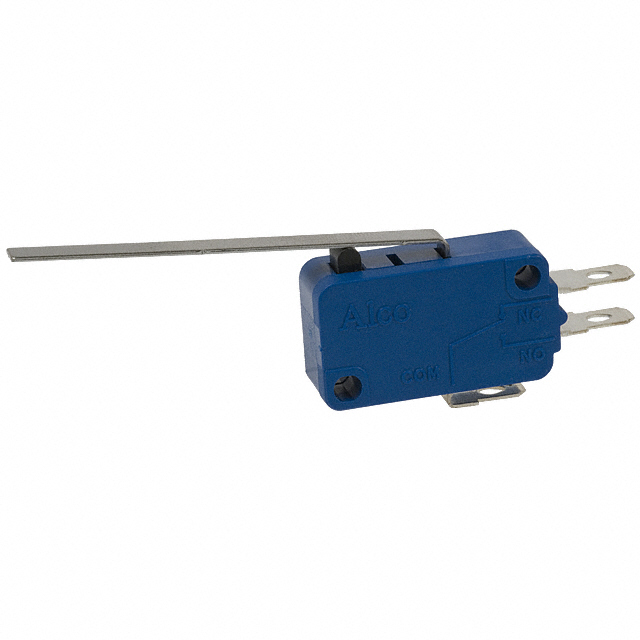

1478603-4
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH SNAP ACTION SPDT 16A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1478603-4
ObsoleteTE Connectivity Raychem Cable Protection
SWITCH SNAP ACTION SPDT 16A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1478603-4 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 16 A |
| Differential Travel | 0.094 in |
| Differential Travel | 2.4 mm |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 30 gf |
| Operating Position | 15.4 mm |
| Operating Position | 0.606 in |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -20 C |
| Overtravel [x] | 2.6 mm |
| Overtravel [x] | 0.102 in |
| Pretravel | 7.5 mm |
| Pretravel | 0.296 in |
| Switch Function | On-Mom |
| Termination Style | Solder, Quick Connect |
| Termination Style | 4.7 mm, 0.187 in |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1478603 Series
Switch SPDT Chassis Mount
