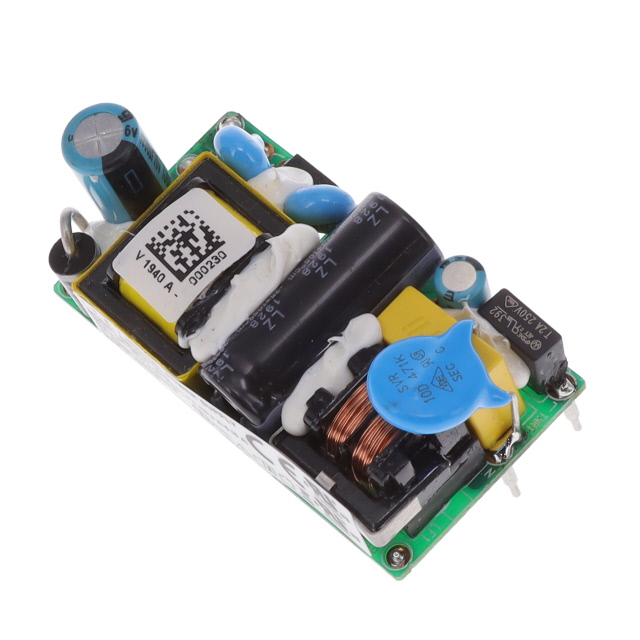

GB10S07P01

Active

SL POWER / Advanced Energy

10 WATTS SINGLE OUTPUT POWER SUPPLY

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

10 WATTS SINGLE OUTPUT POWER SUPPLY

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 7.5V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

10 WATTS SINGLE OUTPUT POWER SUPPLY

Part	Current - Output 1	Applications	Standard Number	Mounting Type	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Type	Features	Approval Agency	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Voltage - Output 1	Minimum Load Required
SL POWER / Advanced Energy GB10S07P01	1.3 A	ITE (Commercial), Medical	60601-1, 62368-1	Chassis Mount	4000 V	90 VAC	264 VAC	1	18 mm	27.3 mm	0.71 in	52 mm	2.05 "	1.07 in	Open Frame	Universal Input	CE, cURus, DEMKO	88 %	-25 °C	70 °C	9.8 W	7.5 V
SL POWER / Advanced Energy GB10S07K01	1.3 A	ITE (Commercial), Medical		Chassis Mount	4000 V	100 VAC	240 VAC	1	25.4 mm	40.6 mm	1 "	85.9 mm	3.38 in	1.6 "	Open Frame	Universal Input	CE, cURus, UL	88 %	-25 °C	70 °C	9.8 W	7.5 V
