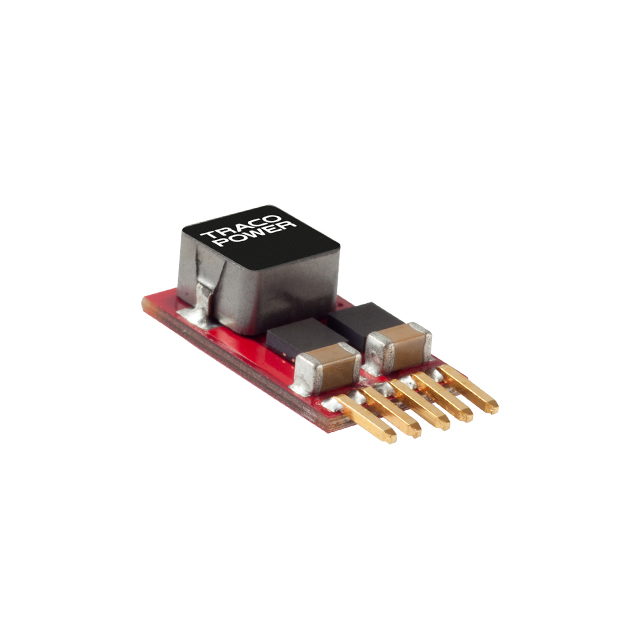

TSR 3-24150
ActiveTraco Power
DC DC CONVERTER 5-15V 45W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TSR 3-24150
ActiveTraco Power
DC DC CONVERTER 5-15V 45W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TSR 3-24150 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 95 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-SIP Module |
| Power (Watts) | 45 W |
| Size / Dimension [x] | 0.61 in |
| Size / Dimension [x] | 15.5 mm |
| Size / Dimension [y] | 0.37 in |
| Size / Dimension [y] | 9.4 mm |
| Size / Dimension [z] | 0.24 in |
| Size / Dimension [z] | 6.2 mm |
| Type | Linear Regulator Replacement |
| Voltage - Input (Max) [Max] | 30 V |
| Voltage - Input (Min) [Min] | 10 VDC |
| Voltage - Output 1 [Max] | 15 V |
| Voltage - Output 1 [Min] | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 35.40 | |
| 10 | $ 30.82 | |||
| 25 | $ 29.80 | |||
| 50 | $ 29.06 | |||
| 100 | $ 28.33 | |||
| 250 | $ 27.39 | |||
| 500 | $ 24.35 | |||
Description
General part information
TSR 3 Series
Linear Regulator Replacement DC DC Converter 1 Output 5 ~ 15V 3A 10V - 30V Input
