EN2P4F22
ActiveSwitchcraft Inc.

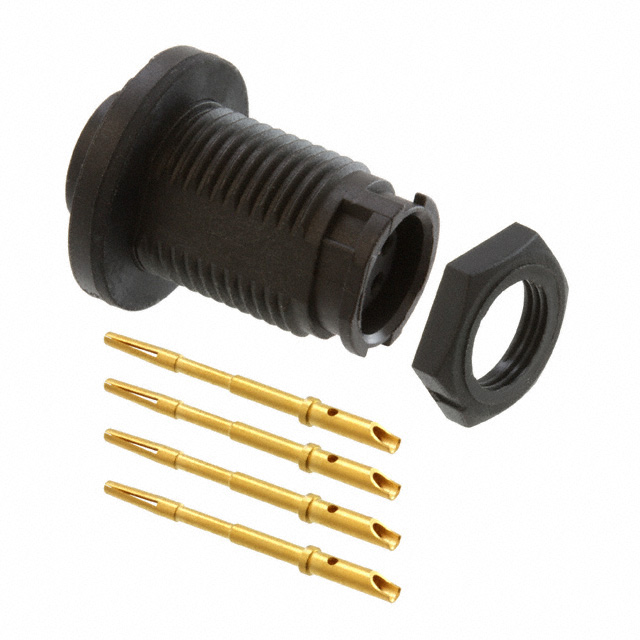

CONN RCPT FMALE 4POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EN2P4F22
ActiveSwitchcraft Inc.
CONN RCPT FMALE 4POS GOLD CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EN2P4F22 | EN2P4F Series |
|---|---|---|
| Applications | Marine, Communication Systems, Medical, Industrial | Marine, Communication Systems, Medical, Industrial |
| Color | Black | Black |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Material | Copper Alloy | Copper Alloy |
| Current Rating (Amps) | 1.5 A | 1.5 A |
| Fastening Type | Bayonet Lock | Bayonet Lock |
| Ingress Protection | IP68, IP66, IP67 | IP68, IP66, IP67 |
| Insert Material | Elastomer | Elastomer |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Feature | Bulkhead - Front Side Nut | Bulkhead - Front Side Nut |
| Mounting Type | - | Through Hole, Panel Mount |
| Number of Positions | 4 | 4 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Keyed | Keyed |
| Primary Material | Plastic | Plastic |
| Shielding | Unshielded | Unshielded |
| Termination | Crimp, Solder Cup | Crimp, Solder Cup, Solder |
| Voltage Rating | 125 VAC | 125 VAC |
EN2P4F Series
CONN RCPT FMALE 4POS GOLD CRIMP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Insert Material | Connector Type | Termination | Ingress Protection | Fastening Type | Contact Material | Orientation | Applications | Current Rating (Amps) | Mounting Feature | Voltage Rating | Material Flammability Rating | Color | Primary Material | Number of Positions | Contact Finish - Mating | Shielding | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. EN2P4F22 | 85 °C | -40 °C | Elastomer | Receptacle, Female Sockets | Crimp, Solder Cup | IP66, IP67, IP68 | Bayonet Lock | Copper Alloy | Keyed | Communication Systems, Industrial, Marine, Medical | 1.5 A | Bulkhead - Front Side Nut | 125 VAC | UL94 V-0 | Black | Plastic | 4 | Gold | Unshielded | |
Switchcraft Inc. EN2P4F22P | 85 °C | -40 °C | Elastomer | Receptacle, Female Sockets | Solder | IP66, IP67, IP68 | Bayonet Lock | Copper Alloy | Keyed | Communication Systems, Industrial, Marine, Medical | 1.5 A | Bulkhead - Front Side Nut | 125 VAC | UL94 V-0 | Black | Plastic | 4 | Gold | Unshielded | Panel Mount, Through Hole |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.03 | |
| 10 | $ 7.23 | |||
| 25 | $ 6.81 | |||
| 50 | $ 6.64 | |||
| 100 | $ 6.46 | |||
| 300 | $ 6.15 | |||
Description
General part information
EN2P4F Series
4 Position Circular Connector Receptacle, Female Sockets Crimp or Solder Cup
