BLF6G22L-40BN,118 - BLF6G22L-40BN,118

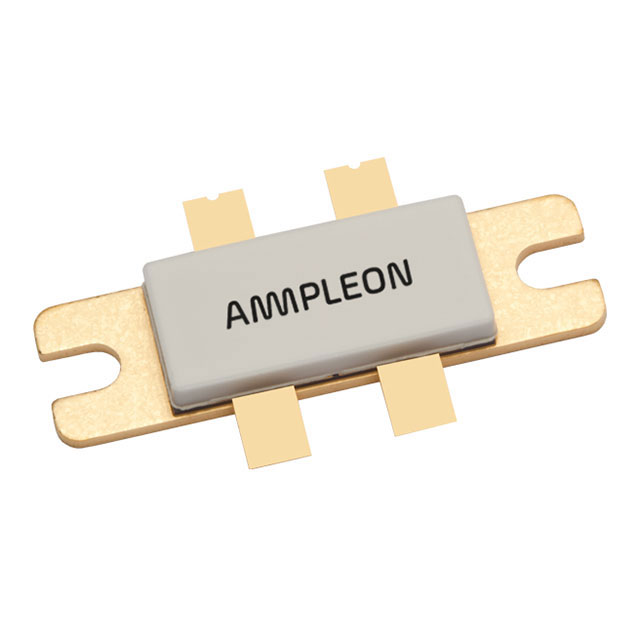

BLF6G22L-40BN,118

Obsolete
Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM6

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet
BLF6G22L-40BN,118 - BLF6G22L-40BN,118

BLF6G22L-40BN,118

Obsolete
Ampleon USA Inc.

RF MOSFET LDMOS 28V CDFM6

Deep-Dive with AI

DocumentsDatasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

SpecificationBLF6G22L-40BN,118BLF6G22 Series
ConfigurationCommon Source, DualCommon Source, Dual
Current - Test345 mA1.1 - 950 mA
Current Rating (Amps)-16 - 34 A
Frequency [Max]2.17 GHz2.17 GHz
Frequency [Min]2.11 GHz2.11 GHz
Gain19 dB17 - 19 dB
Mounting TypeChassis MountChassis Mount
Package / CaseSOT-1112ASOT-502B, SOT-539A, SOT-1112A, SOT-608A, SOT-608B
Power - Output2.5 W2.5 - 50 W
Supplier Device PackageCDFM6SOT502B, LDMOST, SOT539A, CDFM6, CDFM2
Voltage - Rated65 V65 V
Voltage - Test28 V28 - 32 V

BLF6G22 Series

RF MOSFET LDMOS 28V SOT502B

PartVoltage - RatedPackage / CaseCurrent Rating (Amps)Voltage - TestGainCurrent - TestSupplier Device PackageFrequency [Min]Frequency [Max]Power - OutputMounting TypeConfiguration
Ampleon USA Inc.
BLF6G22LS-100,118
65 V
SOT-502B
29 A
28 V
18.2 dB
950 mA
SOT502B
2.11 GHz
2.17 GHz
25 W
Chassis Mount
Ampleon USA Inc.
BLF6G22L-40P,112
65 V
16 A
28 V
19 dB
410 mA
LDMOST
2.11 GHz
2.17 GHz
13.5 W
Chassis Mount
Common Source, Dual
Ampleon USA Inc.
BLF6G22-180PN,112
65 V
SOT-539A
32 V
17.5 dBi
1.6 A
SOT539A
2.11 GHz
2.17 GHz
50 W
Chassis Mount
Common Source, Dual
Ampleon USA Inc.
BLF6G22L-40BN,118
65 V
SOT-1112A
28 V
19 dB
345 mA
CDFM6
2.11 GHz
2.17 GHz
2.5 W
Chassis Mount
Common Source, Dual
Ampleon USA Inc.
BLF6G22LS-130,112
65 V
SOT-502B
34 A
28 V
17 dBi
1.1 A
SOT502B
2.11 GHz
2.17 GHz
30 W
Chassis Mount
Ampleon USA Inc.
BLF6G22LS-130,118
65 V
SOT-502B
34 A
28 V
17 dBi
1.1 A
SOT502B
2.11 GHz
2.17 GHz
30 W
Chassis Mount
Ampleon USA Inc.
BLF6G22-45,135
65 V
SOT-608A
28 V
18.5 dBi
CDFM2
2.11 GHz
2.17 GHz
2.5 W
Chassis Mount
Ampleon USA Inc.
BLF6G22S-45,112
65 V
SOT-608B
28 V
18.5 dBi
CDFM2
2.11 GHz
2.17 GHz
2.5 W
Ampleon USA Inc.
BLF6G22L-40P,118
65 V
16 A
28 V
19 dB
410 mA
LDMOST
2.11 GHz
2.17 GHz
13.5 W
Chassis Mount
Common Source, Dual
Ampleon USA Inc.
BLF6G22LS-100,112
65 V
SOT-502B
29 A
28 V
18.2 dB
950 mA
SOT502B
2.11 GHz
2.17 GHz
25 W
Chassis Mount

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$

Description

General part information

BLF6G22 Series

RF Mosfet 28 V 345 mA 2.11GHz ~ 2.17GHz 19dB 2.5W CDFM6
