A98000-031

Active

Omnetics

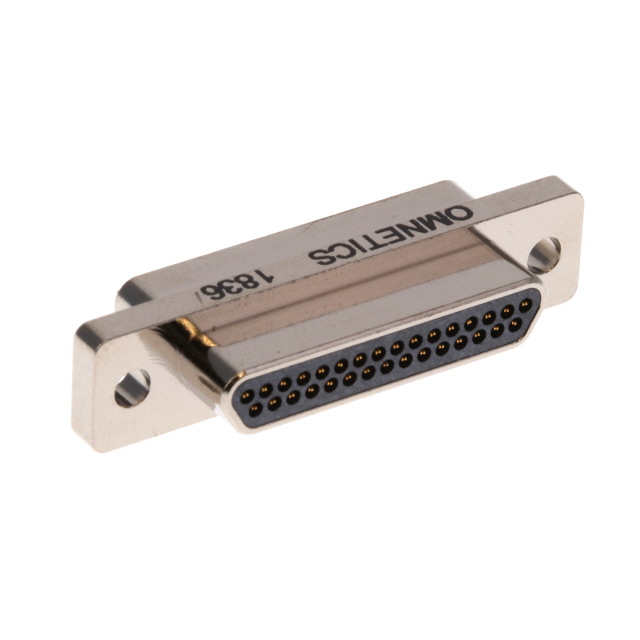

CONN MICRO-D PLUG 31POS SLDR CUP

Search across all available documentation for this part.

Active

Omnetics

CONN MICRO-D PLUG 31POS SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A98000-031	MMDP-031 Series

1st Connector	-	Plug, Male Pins
2nd Connector	-	Individual Wire Leads
Color	-	Multiple, Individual
Connector Style	Micro-D, D-Type	Micro-D, D-Type
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish	Gold	Gold
Contact Finish Thickness	50 µin	50 µin
Contact Finish Thickness	1.27 µm	1.27 µm
Contact Form	Stamped	Stamped
Contact Material	Copper Alloy	Copper Alloy
Contact Type	Signal	Signal
Current Rating (Amps)	3 A	3 A
Dielectric Material	Thermoplastic	Thermoplastic
Flange Feature	Housing/Shell (Unthreaded)	Housing/Shell (Unthreaded)
Length	-	457.2 mm
Length	-	1.5 ft
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	31	31
Number of Rows	2	2
Operating Temperature [Max]	125 °C	125 °C
Operating Temperature [Min]	-55 °C	-55 °C
Shell Material, Finish	Aluminum, Nickel Plated, Electroless	Aluminum, Nickel Plated, Electroless
Shell Size, Connector Layout [custom]	0.05	0.05
Shell Size, Connector Layout [custom]	0.05	0.05
Shielding	-	Unshielded
Type	-	D-Type, Micro-D

CONN MICRO-D PLUG 31POS SLDR CUP

Part	Number of Positions	Number of Rows	Connector Style	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Mounting Type	Contact Finish	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature	Dielectric Material	Shell Material, Finish	Contact Type	Current Rating (Amps)	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Contact Form	Type	Shielding	Color	2nd Connector	1st Connector	Length [x]	Length [x]
Omnetics A98000-031	31	2	D-Type, Micro-D	0.05	0.05	Free Hanging (In-Line)	Gold	Copper Alloy	-55 °C	125 °C	Housing/Shell (Unthreaded)	Thermoplastic	Aluminum, Electroless, Nickel Plated	Signal	3 A	Male Pins, Plug	50 µin	1.27 µm	Stamped
Omnetics A98100-031	31						Gold										50 µin	1.27 µm		D-Type, Micro-D	Unshielded	Individual, Multiple	Individual Wire Leads	Plug, Male Pins	457.2 mm	1.5 ft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

31 Position D-Type, Micro-D Plug, Male Pins Connector
